Explorer Precision Balance (External Calibration)

The OHAUS Explorer® Series has risen to the next level of ingenuity—expanding on its modern features and design to offer unmatched functionality in a line of high-performance balances unlike any other on the market.  This NEW Model offers External Calibration for a more traditional approach.

  • Explorer offers optimized linearity and repeatability specifications, enhanced vibration filtering for better balance stability, as well as the choice AutoCal Automatic Internal Calibration to improve accuracy or External Calibration for a more traditional approach.
  • A large color touch-screen display, icon-driven application software that features 14 unique application models, and an adjustable angle display make Explorer the most advanced balance in its class.

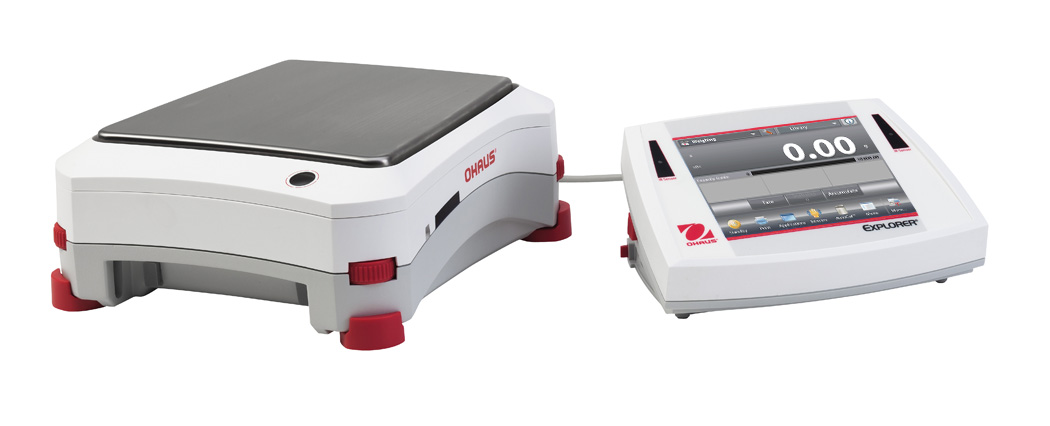

  • Explorer's modular design features a color touch display that can be separated from the weighing base for ultimate flexibility in any workplace.
  • External Calibration Models Available (E)—Select models feature traditional external calibration in which external weights (user’s choice of calibration weight values) are required to calibrate the balance to ensure accuracy.
Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

  • Intelligent PERFORMANCE—All Explorers have newly optimized linearity and repeatability specifications and enhanced vibration filtering for better balance stability.
  • Intuitive OPERATION—A large color touch-screen display, icon-driven application software with 14 unique application modes.
  • Ingenious DESIGN—The base and display separate for maximum flexibility in any work area.
  • Draftshield models isolate the weighing chamber to enhance stability and speed results while offering maximum accessibility to the weighing chamber through top-mounted side doors or through the versatile top door that flips or slides open.
  • Intuitive USER SETUP – Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use.
  • Practical Features—Explorer has up to four user-programmable touchless sensors to minimize cross contamination and wear and tear normally associated with repeated touching of the balance.
  • Intuitive Software -14 built-in applications with customization capabilities to meet the varying needs in laboratory and industrial settings.
  • Ingenious DRAFTSHIELD – Explorer’s draftshield provides ample access and visibility to the weighing chamber through the versatile top door and side sliding doors.
  • Practical TOUCHLESS SENSORS – Explorer features up to four touchless sensors for hands-free operation of zero, print, calibration, tare, automated draftshield doors and other selectable functions.
  • Intelligent CALIBRATION – AutoCal™ ensures performance and assists with routine maintenance by automatically calibrating the balance daily.
  • Intuitive USER SETUP Explorer is the industry’s most easy-to-use balance, featuring leveling assistance and instructional messaging for quick out-of-the-box setup and use.
  • NTEP Models
  • Measurement Canada Models
  • 1 year warranty
Summary

product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
Explorer Precision Balance (External Calibration)
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
EX223/E External Calibration & Fradt Shield 220 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX223 Internal Calibration; AutoCal & Draft Shield 220 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX423N Certified; AutoCal & Draft Shield 420 x 0.01 g 5.12"/130 mm VGA mg; g; oz; lb; ct; ozt; grain; dwt AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX423/E External Calibration & Draft Shield 420 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX423 Internal Calibration; AutoCal & Draft Shield 420 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX623 Internal Calibration; AutoCal & Draft Shield 620 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX1103N Certified AutoCal & Draft Shield 1100 x 0.01 g 5.12"/130 mm VGA mg; g; oz; lb; ct; ozt; grain; dwt AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX1103 Internal Calibration 1100 x 0.001 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 13.78 x 15.47" 21 Lbs
EX2202/E External Calibration 2200 x 0.01 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 15 Lbs
EX2202 Internal Calibration 2200 x 0.01 g 5.12"/130 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 15 Lbs
EX4202N Certified 4200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; kg; oz; lb; ct; ozt; grain; dwt AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 15 Lbs
EX4202 Internal Calibration 4200 x 0.01 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 15 Lbs
EX6202/E External Calibration 6200 x 0.01 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX6202 Internal Calibration 6200 x 0.01 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX6201/E External Calibration 6200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX6201 Internal Calibration 6200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX10202N Certified 10200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; kg; oz; lb; ct; ozt; grain; dwt AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX10202 Internal Calibration 10200 x 0.01 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX10201N Certified 10200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; kg; oz; lb; ct; ozt; grain; dwt AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs
EX10201 Internal Calibration 10200 x 0.1 g 7.48" x 7.87"/190 x 200 mm VGA g; mg; kg; ct; oz; ozt; lb; pwt; grain; newton... AC; Rechargeable Battery Display Housing 7.68 x 3.54 x 6.06"/ Base Housing 9.06 x 3.86 x 15.47" 16 Lbs

Videos

Explorer Analytical and Precision Balance Video

Explorer Operations Video

Summary

product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
Explorer Precision Balance (External Calibration)
OHAUS Laboratory Market Segment Brochure
Manual
Explorer High Capacity Battery Kit Installation Manual

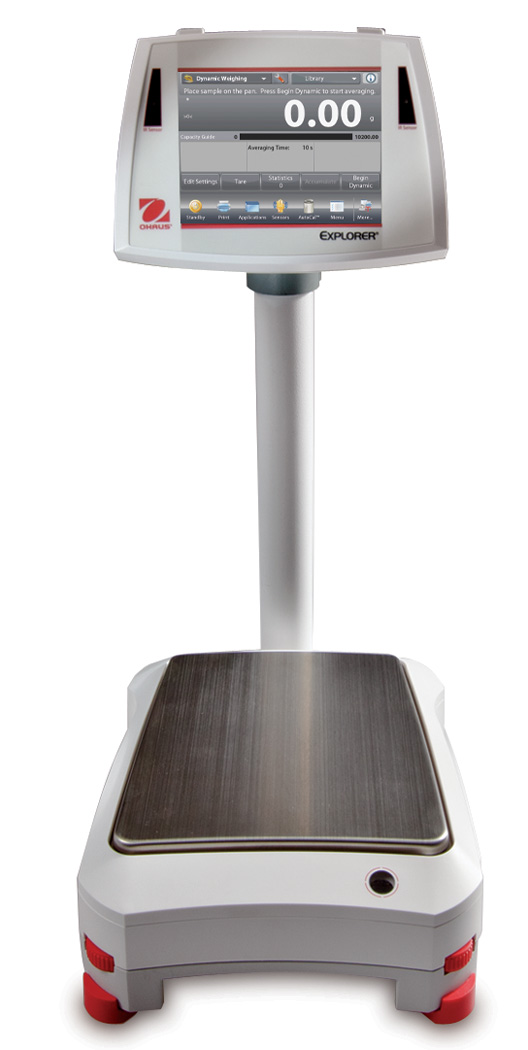

Explorer Analytical and Precision Balances Display Tower Mount Kit Installation Instructions
