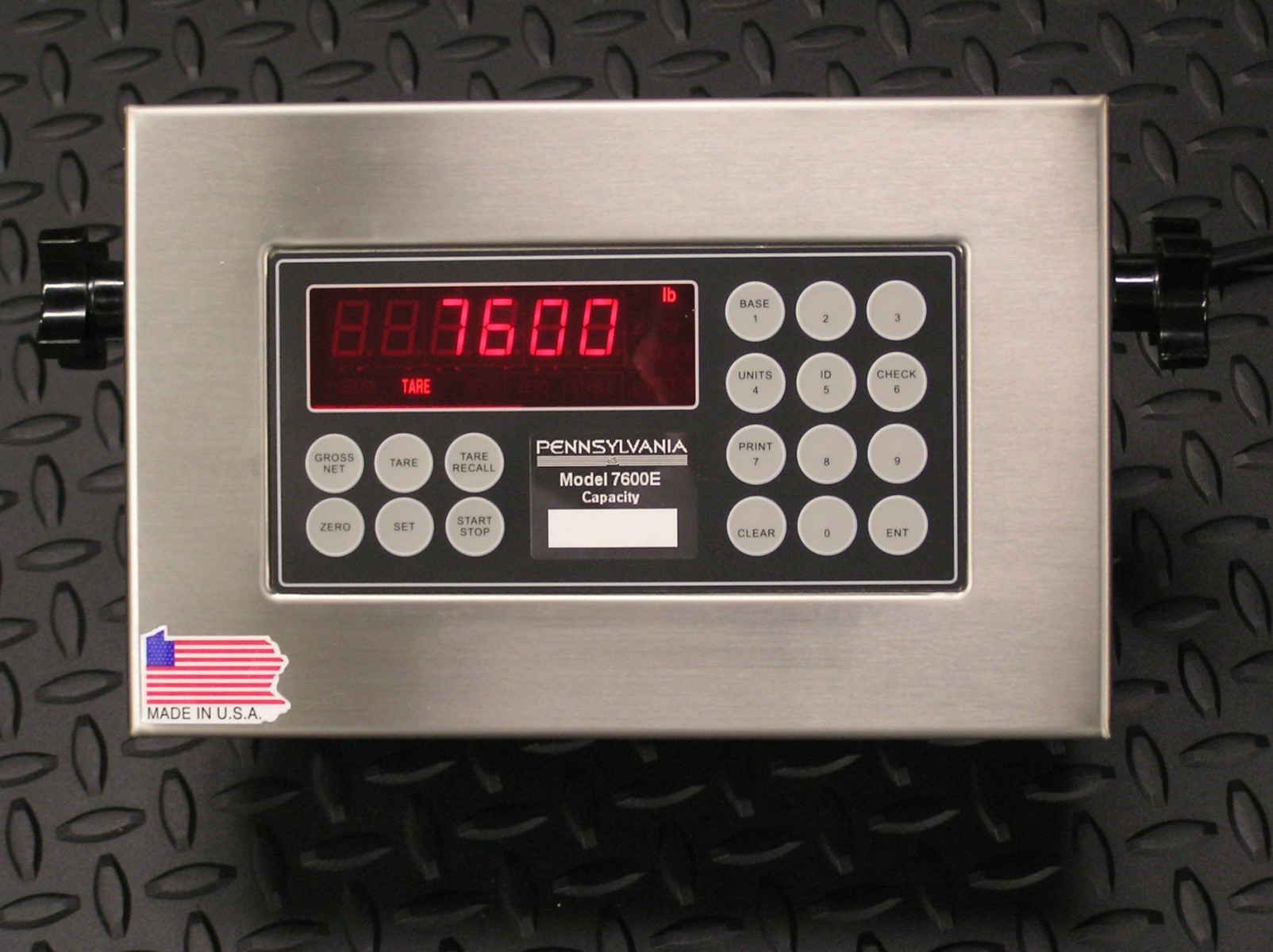

7600 Indicator – Keypad version with Expanded Features

POWER & FLEXIBILITY– The 7600E adapts to the most demanding applications with a wide range of outputs, options, and features. It is one of the easiest to use, easiest to install, easiest to live with indicators available today! This Indicator is used in Truck Scale Applications, Batching Systems, Bench & Floor Platforms and is an Ideal Replacement Indicator. This expanded operation features dual base capability, weigh or high resolution count & weigh and full function numeric keyboard for direct data entry.

Description

Factory Match to any Pennsylvania Scale Platform when ordered as a system
Stainless Steel wash down enclosure w/ U- bracket.
Weigh or High Resolution Count & Weigh.
Expanded operation features; dual base capability
Load Cell: Quick Disconnect (Standard.) or Hard Wired
Full function numeric keyboard for direct data entry
(2) Programmable Serial Data Ports standard
Smart Serial™ Setup programmable serial data strings
Drives up to (8) 350 ohm or (10) 1000 ohm load cells
Proven PLUS+ Series Main Board fits all Pennsylvania brand products
ESD and RFI shielding are standard
4 year warranty
Made in Lancaster, Pennsylvania using USA Made Parts

https://www.pennscale.com/wp-content/uploads/2012/12/Indicator-7500-7600-50.pdf

Manual

Ethernet Option

Lantronic Xport Informtion

7600E Analog Setup

7600 Setpoint Option

AC/DC Operation - - 30+ hours continuous use with integrated recharging and HD power cord; functions as an U.P.S.

57825 - 220/230 Volt Power

48445- Load Cell Connector Kit - Field Kit for Pennsylvania QUICK DISCONNECT; mates to standard fitting on all Pennsylvania Scale Products.

57520 - Replacement Battery Pack for AC/DC units

DB or 57834 FIELD KIT for Pennsylvania QUICK - 2nd Base Input—for dual base or Sample/Bulk Counting applications -Note: PLUS+ series board ONLY

AO – ANALOG OUTPUT or 57811 FIELD KIT - Jumper select 0-10 VDC or 4-20 mA proportional output via 2 post terminals

ETHERNET MODULE or 57869A FIELD KIT - Lantronix Xport module and option board includes software license & IP address

SSR SOLID STATE RELAY BOARD - (2) AC or DC I/O relays respond to COUNT or WEIGHT

SAE SPECIAL APPLICATIONS - Many standard or optional special operational features can be flashed-in using Serial Data Loader feature

57520 - Replacement Battery Pack for AC/DC units

Panel Mount Version - Must specify with order-requires E-enclosure + (2) 57907 brackets (clamp into panel from behind) w/hardware.

7600 counting/bench scale
