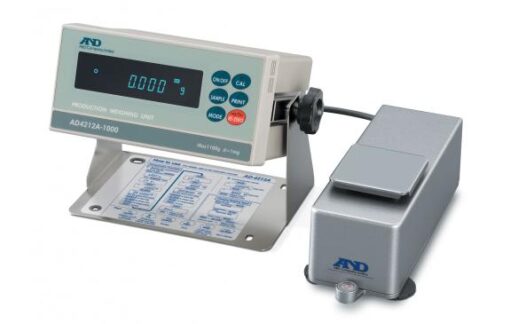

AD4212 Precision Weighing Sensor

Precision Weighing Sensor

To improve productivity, you can create your own weighing system using the AD-4212A Precision Weighing Sensor.
The compact design, as well as the separate weighing unit and display unit, ensure easy installation of the SHS at any stage of your weighing system.

High speed response of 0.8 seconds and high precision weighing resolution of 0.1mg using Super Hybrid Sensor (SHS)
technology for an extremely effective weighing system !

Categories: , , , , ,
  • Comparator function and Buzzer function – A three-level comparator output (HI, OK or LO indicator) with I/O, as well as a Buzzer function, provide a simple and easy design solution for any precise weighing system.
  • External input function – The Re-Zero and Print key function can be controlled externally using the I/O D-Sub 25-pin connector.
    Auto Power.
  • ON and OFF function – When the balance is plugged in, the ON function is automatically displayed. The OFF function will activate
    automatically if the balance is not operated for 10 minutes.
  • Auto Zero display after data output – Possible to set the display to automatically adjust to Zero after weight data is output.
  • Full Digital Calibration function – Simple and easy to calibrate with standard calibration mass for weighing accuracy.
  • Response Speed setting function – Function available to select optimum response speed from FAST, MID or SLOW.
  • WinCT software – Windows Communication Tools (WinCT) software for the high-speed transmission of weight data to a PC, and the ability to control the AD-4212A by sending commands.
  • Data memory function – Capable of storing any of the following; 200 weight measurements, 100 weight measurements with time & date, 50 calibration &calibration test measurements, 20 unit weight measurements for counting mode or 20 comparator setting limits values.
  • RS-232C – Standard interface function of bi-directional RS-232C for weighing data transmission and control of the AD-4212A.
  • Ethernet interface – Optional Ethernet interface (OP-08) for high-speed weight data transmission and multi-weighing lines application.
    ( Comes with application software WinCT-plus in CD-ROM.
Model # Capacity Platter Size Weigh Unit Dimensions Display Unit Dimensions Battery Shipping Wt Weigh Unit Shipping Wt Display Unit
AD-4212A-100 110g / .0001g 50 x 50 mm 80 x 230 x 90 mm 237 x 150 x 155 mm AC 2kg 2kg
AD-4212A-200 210g / .001g 50 x 50 mm 80 x 230 x 90 mm 237 x 150 x 155 mm AC 2kg 2kg
AD-4212A-600 610g / .001g 70 x 70 mm 80 x 230 x 90 mm 237 x 150 x 155 mm AC 2kg 2kg
AD-4212A-1000 1100g / .001g 70 x 70 mm 80 x 230 x 90 mm 237 x 150 x 155 mm AC 2kg 2kg
  • AD4212A-01 - BCD output / External contact input
  • AD4212A-07 - Extension cable (3m)
  • AD4212A-08 - Ethernet interface (With application software WinCT-plus in CD-ROM)
  • AD4212A-19 - Stainless steel breeze break ( Standard for AD-4212A-100 )
  • AD4212A-20 - Metal leveling foot
  • AD-8121B - Compact Printer
  • AD-8118B - Journal Printer
  • AD-8951 - Comparator Light
  • AD-1683EX - Static Eliminator
