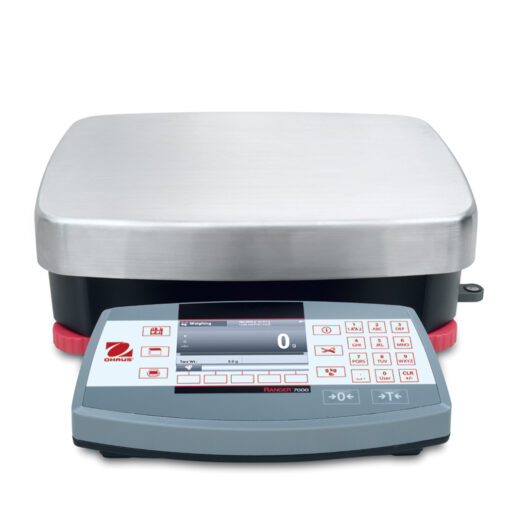

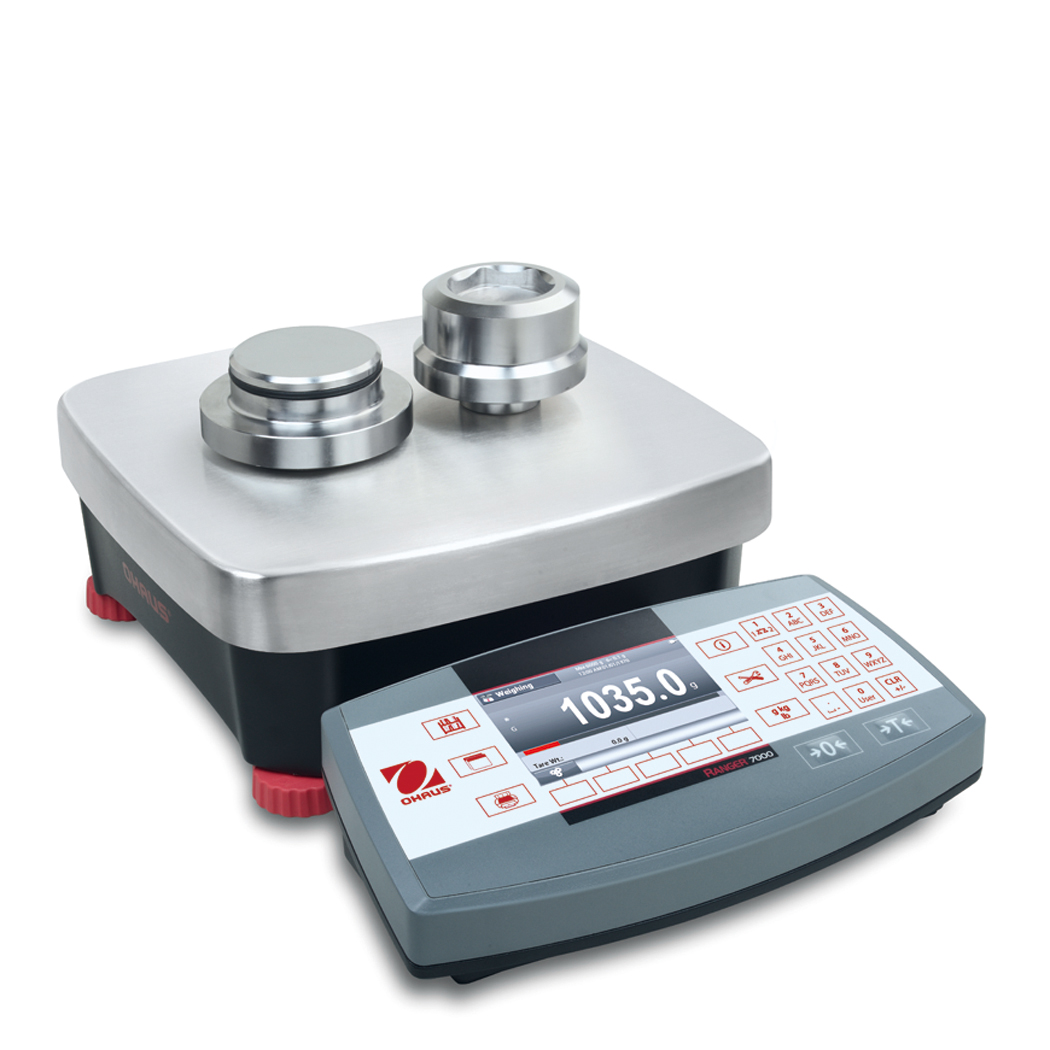

Ranger 7000 Compact Bench Scale

The Ranger 7000 Counting Scale offers the best of every ingenious feature that makes OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

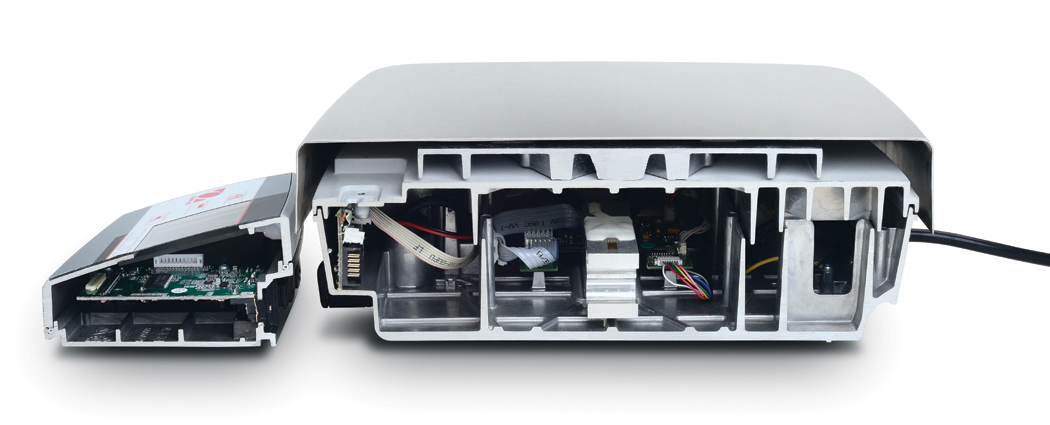

The Ranger 7000 was developed to thrive in rugged and harsh industrial environments. This modular scale was built with IP54 cast metal housing and sealed metal indicator to ensure durability.

Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

  • IP54 Protection Rating to thrive in rugged and harsh industrial environments.

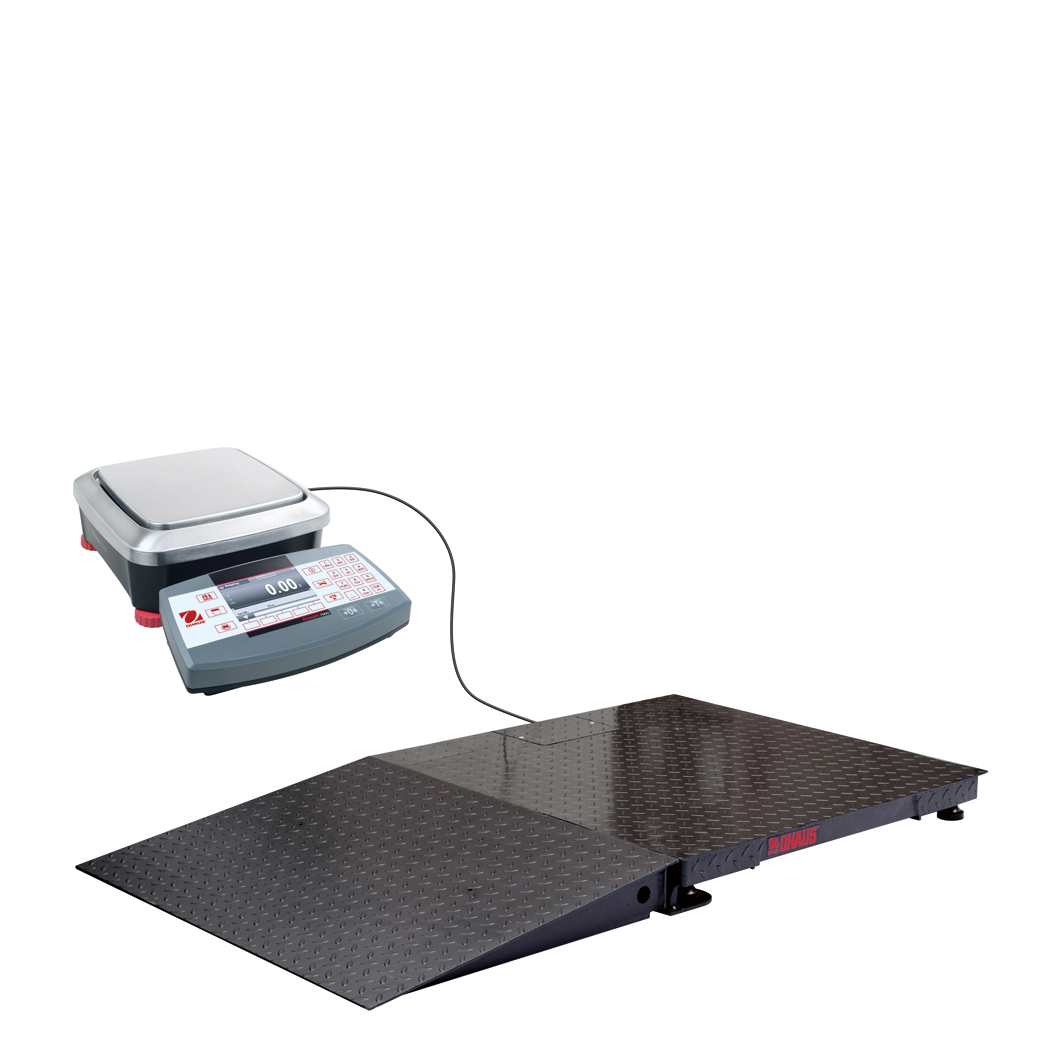

  • Advanced Features Take Industrial Weighing to the Next Level — Ranger 7000 has ten advanced application modes for a variety of complex applications which minimize the need for manual calculations, and can also control peripheral devices and/or a scale platform with option kit.
  • Fast Performance and Legal for Trade Certifications assure Accurate Results — With a one second stabilization time, up to 75,000d or 350,000d display resolution and legal for trade certifications, Ranger 7000 provides the precision that cannot be matched by any scale in its class.

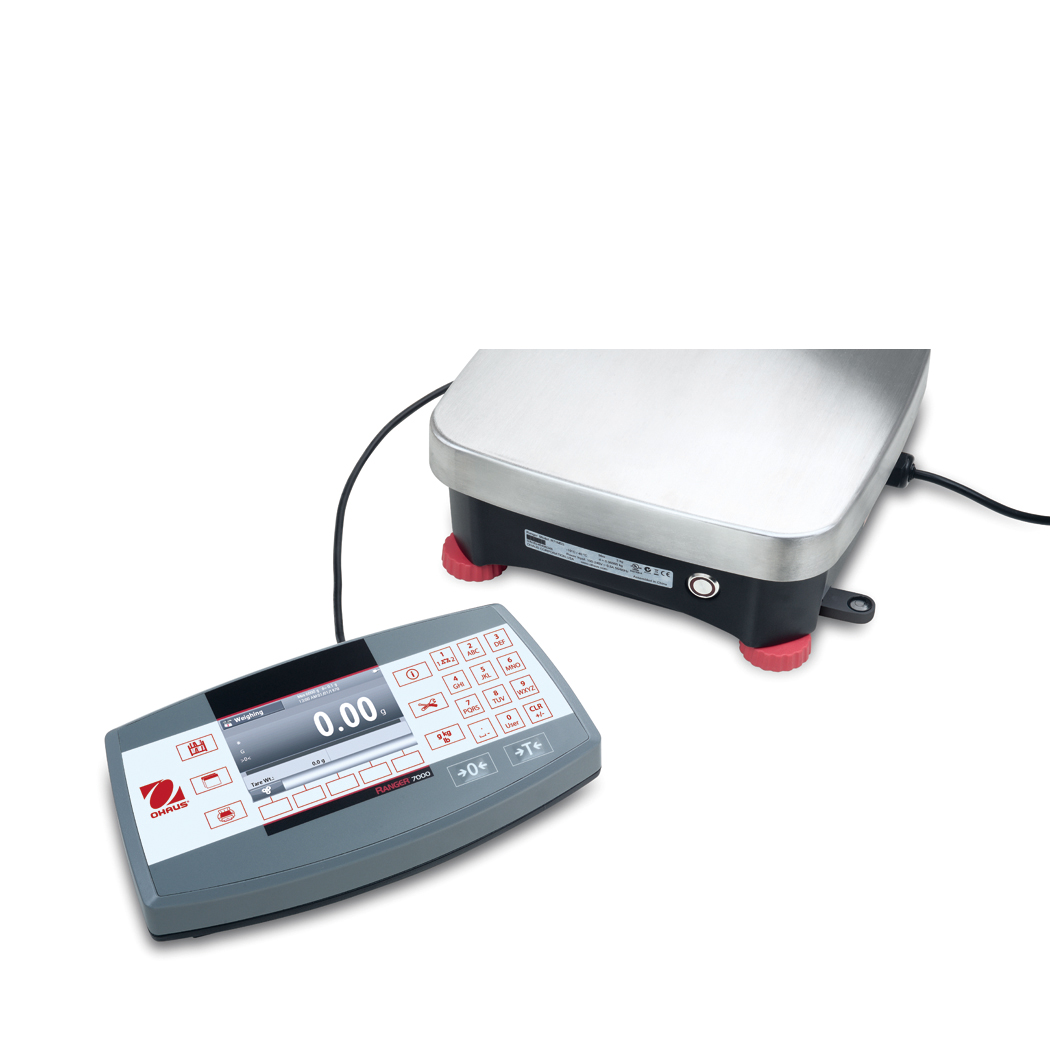

  • Sturdy Industrial and Modular Design Support Flexible and Heavy-Duty Use — Ranger 7000 was developed to thrive in rugged and harsh industrial environments. This modular scale was built with IP54 cast metal housing and sealed metal indicator to ensure durability.
  • Cutting-Edge SmarText™ 2.0 Software Powers the Technologically Advanced Ranger 7000 — With SmarText 2.0 software and a 4.3 inch graphic display, the advanced functionality of Ranger 7000 is simple to use with minimal training

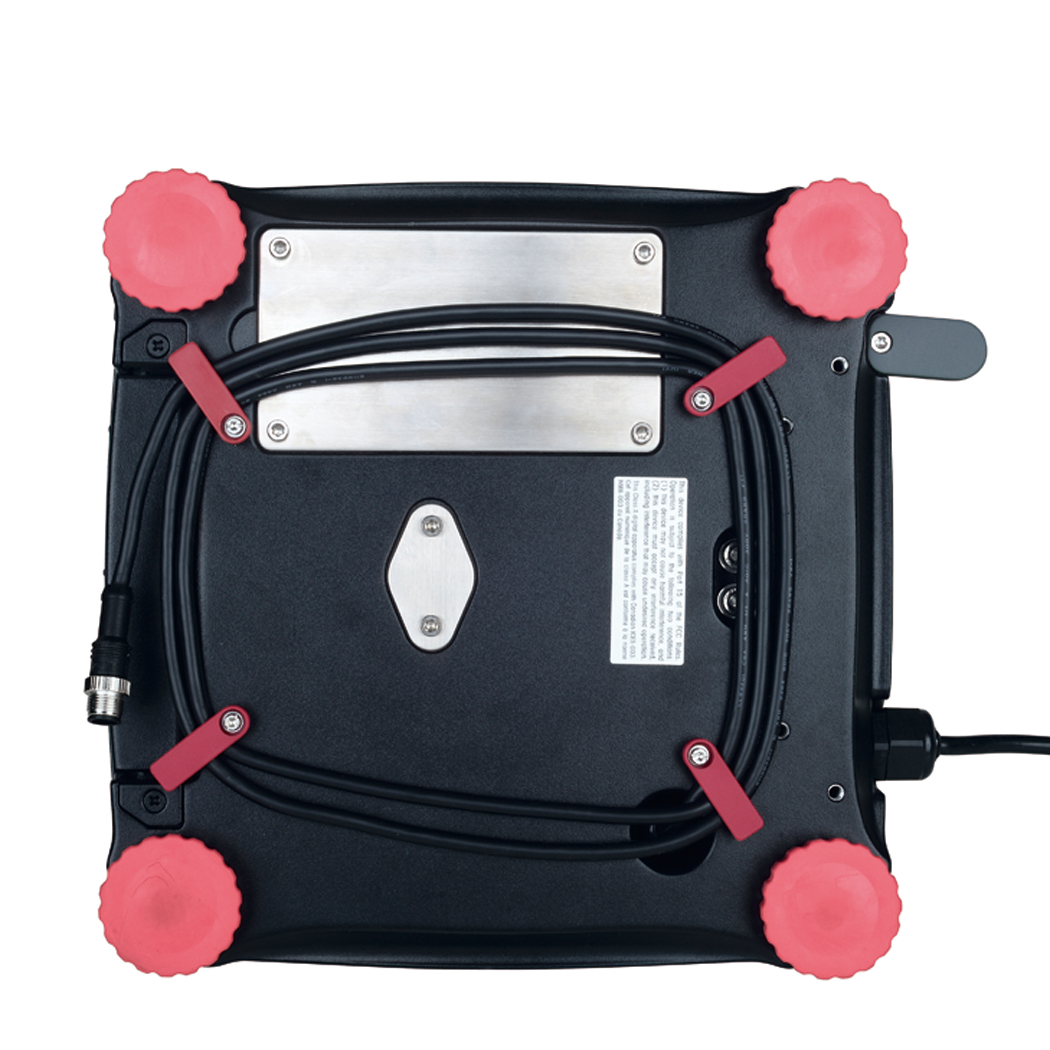

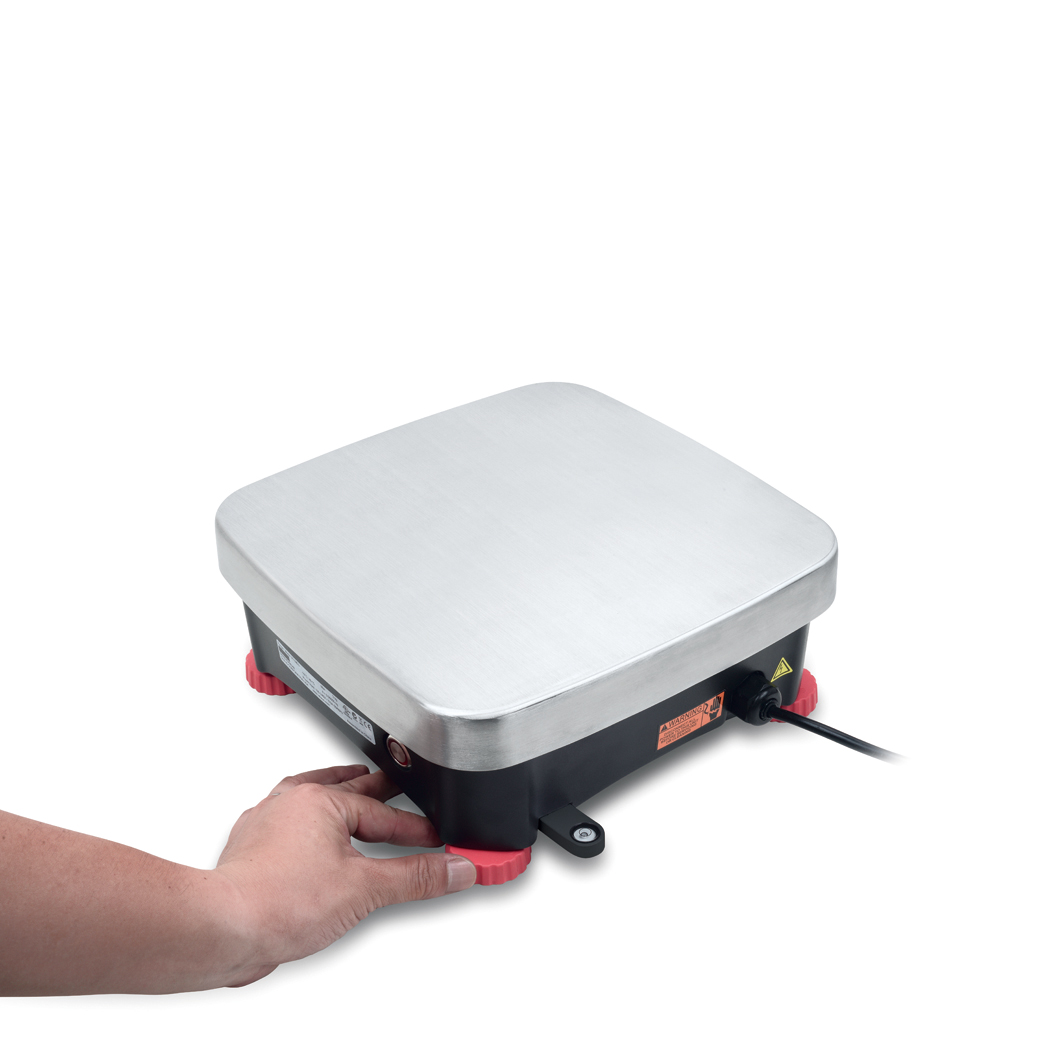

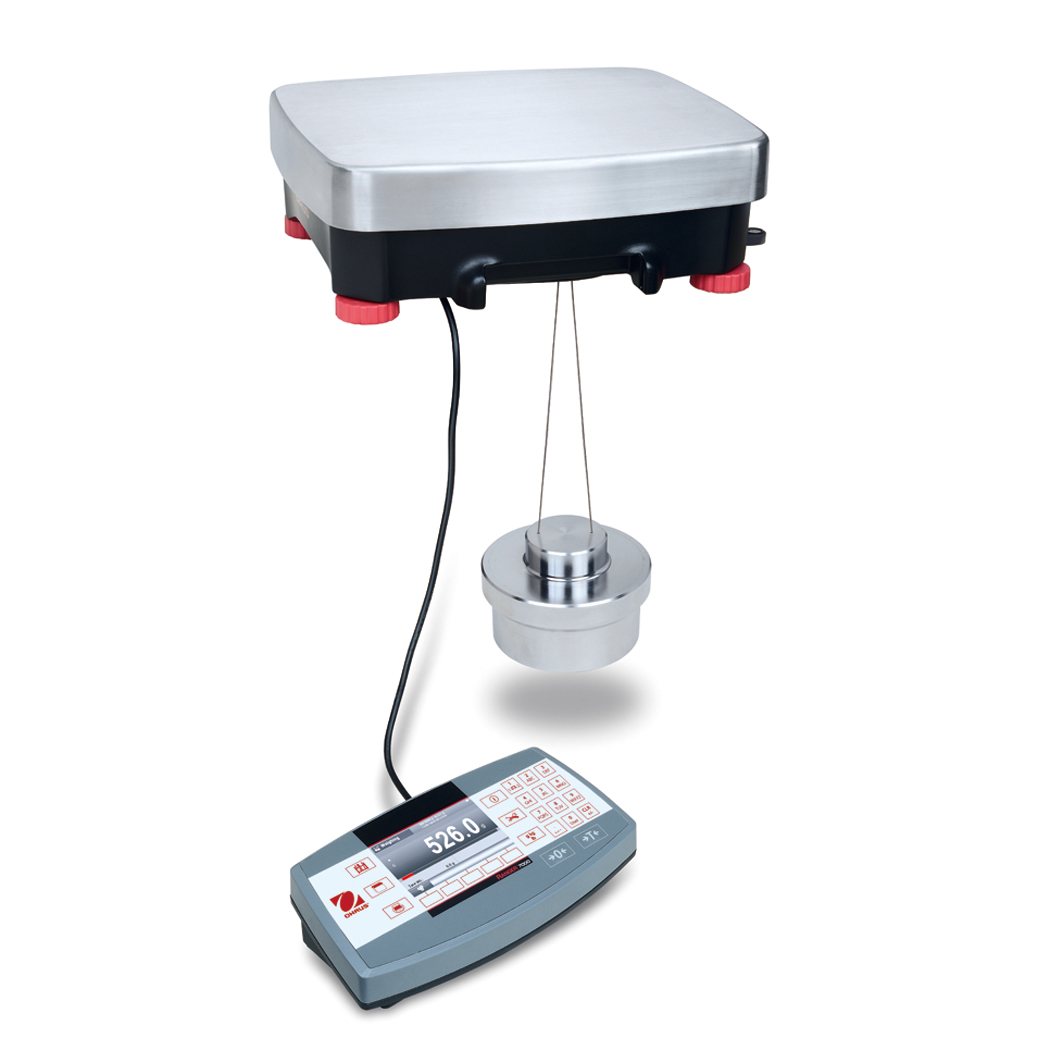

  • Other Standard Features and Equipment Removable stainless steel platform, check weighing lights with selectable operation and audible signal settings, integral weigh below hook, sealed front panel, menu lock switch, level indicator, adjustable leveling feet, six selectable operating languages (English, Spanish, French, German, Italian and Chinese), selectable environmental and auto-print settings, stability indicator, overload/ underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare.
  • Application Modes – Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling, Formulation, Differential Weighing, Density Weighing
  • Interface – Optional Ethernet, 2nd RS232, Remote Base, 2 In/4 Out digital I/O
  • Print Templates A total of seven print templates are available to ensure you can print out all of the data you need. Simple and standard pre-defined templates are available for quick printing as well as five templates you can customize so you can print the exact information necessary for your application, eliminating confusion and time to sift through excess unnecessary data.
  • Measurement Canada Certified
  • NTEP Certified
  • 1 year warranty
Summary

product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
Ranger 7000 Compact Bench Scale
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
R71MD3 Ranger 7000 Counting Scale 3 kg × 0.0005 kg 3000 g × 0.5 g 6 lb × 0.001 lb 96 oz × 0.02 oz 11 x 11" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 11 × 11 × 4.5 in 19 lbs
R71MD6 Ranger 7000 Counting Scale 6 kg × 0.001 kg 6000 g × 1 g 15 lb × 0.002 lb 240 oz × 0.05 oz 11 x 11" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 11 × 11 × 4.5 in 19 lbs
R71MD15 Ranger 7000 Counting Scale 15 kg × 0.002 kg 15000g × 2 g 30 lb × 0.005 lb 480 oz × 0.1 oz 12.2 x 14.8" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 14.9 × 12.2 × 5 in 30 lbs
R71MD35 Ranger 7000 Counting Scale 35 kg × 0.005 kg 35000 g × 5 g 70; lb × 0.01 lb 1120 oz × 0.2 oz 12.2 x 14.8" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 14.9 × 12.2 × 5 in 30 lbs
R71MHD3 Ranger 7000 Counting Scale w/InCal 3 kg × 0.0005 kg 3000 g × 0.5 g 6 lb × 0.001 lb 96 oz × 0.02 oz 9.4 x 9.4" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 11 × 11 × 4.5 in 21 lbs
R71MHD6 Ranger 7000 Counting Scale w/InCal 6 kg × 0.001 kg 6000 g × 1 g 15 lb × 0.002 lb 240 oz × 0.05 oz 9.4 x 9.4" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 11 × 11 × 4.5 in 21 lbs
R71MHD15 Ranger 7000 Counting Scale w/InCal 15 kg × 0.002 kg 15000g × 2 g 30 lb × 0.005 lb 480 oz × 0.1 oz 12.2 x 14.8" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 14.9 × 12.2 × 5 in 32 lbs
R71MHD35 Ranger 7000 Counting Scale w/InCal 35 kg × 0.005 kg 35000 g × 5 g 70; lb × 0.01 lb 1120 oz × 0.2 oz 12.2 x 14.8" 4.3" TFT Graphic LCD kg; g; lb; oz; lb:oz AC incl; Rechargeable extra 14.9 × 12.2 × 5 in 32 lbs
Ranger 7000 Service Manual
Ranger 7000 Series Spare Parts List
