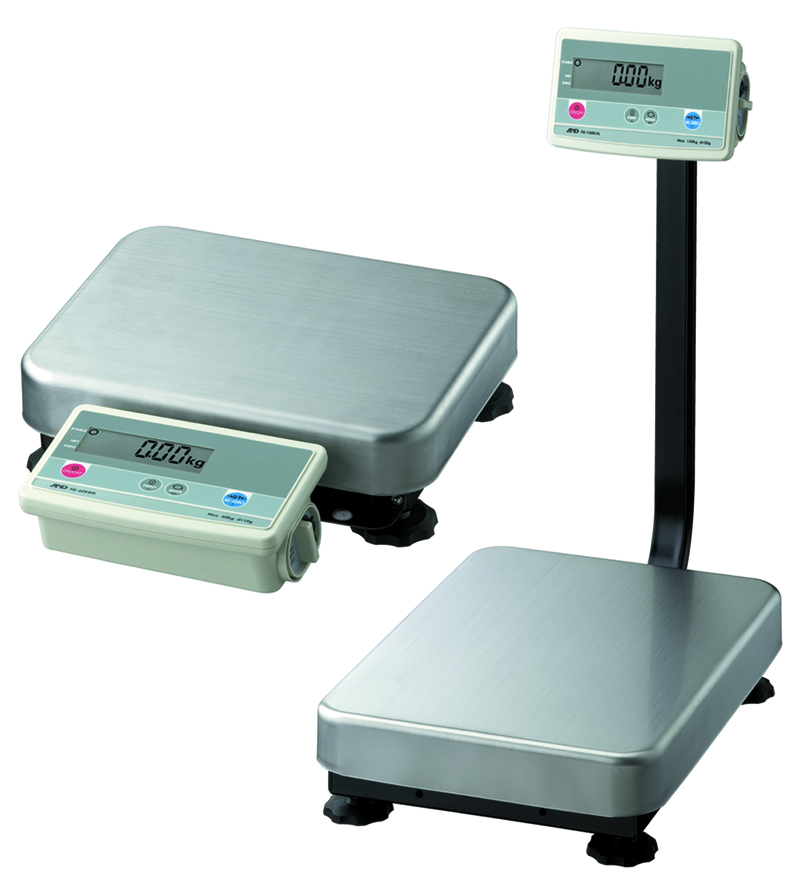

FG-K Series Series Bench Scales

A & D FG Series Bench Scales

The A&D FG-K series combines fast response time with accurate measurement to suit any weighing application.

OR CALL NOW: 215-739-9644

Description

3 resolutions – Normal (1/3000), *High (1/6000 for 30kg and 60kg weighing capacity) and *Higher resolution (1/12000 for 60kg and 1/15000 for 30kg and 150kg weighing capacity) *non NTEP settings
Useful in piece counting applications with sample size of 5, 10, 20, 50 and 100 pcs for unit weight registration
HI / OK / LO comparator indication and optional relay output ( FG-24) for checkweighing applications
Saves power consumption by automatically switching itself off when the scale displays zero for approx. 5 minutes
Alerts user to check AC power supply “Lb1” or batteries “Lb0”
Filtering levels of slow, normal and fast are selectable to suit environmental conditions
Leveling feet and bubble – Easy to adjust the level of the scale for accurate weighing
Optional RS-232C and Comparator Output
Measurement Canada Certified-Certain models
NTEP Certified-certain models
2 year warranty

Technical Specs

NTEP MODELS
Model #	Description	Capacity	Platter Size	Display	Unit of Measure	Battery	Dimensions	Shipping Weight
FG-30KBMN	FG-K Series Series Bench Scales-NTEP-NoColumn	60 x 0.02 lb / 30 x 0.01 kg (no Column)	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KBMN	FG-K Series Series Bench Scales-NTEP-No Column	150 x 0.05 lb / 60 x 0.02 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-150KBMN	FG-K Series Series Bench Scales-NTEP-No Column	300 x 0.1 lb / 150 x 0.05 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-30KAMN	FG-K Series Series Bench Scales-NTEP-With Column	60 x 0.02 lb / 30 x 0.01 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KAMN	FG-K Series Series Bench Scales-NTEP-With Column	150 x 0.05 lb / 60 x 0.02 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-150KAMN	FG-K Series Series Bench Scales-NTEP-With Column	300 x 0.1 lb / 150 x 0.05 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KALN	FG-K Series Series Bench Scales-NTEP-With Column	150 x 0.05 lb / 60 x 0.02 kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs
FG-150KALN	FG-K Series Series Bench Scales-NTEP-With Column 300 x 0.1 lb / 150 x 0.05 kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs
FG-200KALN	FG-K Series Series Bench Scales-NTEP-With Column	400 x 0.1 lb / 200 x 0.05kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs

HIGH RESOLUTION MODELS-NOT NTEP
Model #	Description	Capacity	Platter Size	Display	Unit of Measure	Battery	Dimensions	Shipping Weight
FG-30KBM	FG-K Series Series Bench Scales-Hi Resolution-No Column	60 x 0.005 lb / 30 x 0.002 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KBM	FG-K Series Series Bench Scales-Hi Resolution-No Column	150 x 0.01 lb / 60 x 0.005 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-150KBM	FG-K Series Series Bench Scales-Hi Resolution-No Column	300 x 0.02 lb / 150 x 0.01 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-30KAM	FG-K Series Series Bench Scales-Hi Resolution-With Column	60 x 0.005 lb / 30 x 0.002 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KAM	FG-K Series Series Bench Scales-Hi Resolution-With Column	150 x 0.01 lb / 60 x 0.005 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-150KAM	FG-K Series Series Bench Scales-Hi Resolution-With Column	300 x 0.02 lb / 150 x 0.01 kg	11.8” x 15”	LCD	lb; kg	AC or Battery	NA	12 Lbs
FG-60KAL	FG-K Series Series Bench Scales-Hi Resolution-With Column	150 x 0.01 lb / 60 x 0.005 kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs
FG-150KAL	FG-K Series Series Bench Scales-Hi Resolution-With Column	300 x 0.02 lb / 150 x 0.01 kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs
FG-200KAL	FG-K Series Series Bench Scales-Hi Resolution-With Column	400 x 0.02 lb / 200 x 0.01 kg	15.4” x 20.9”	LCD	lb; kg	AC or Battery	NA	17 Lbs

FG-23 RS-232C Interface
FG-24 Comparator/Setpoint Relay Outputs
FG-25 Display Wall Mount Bracket
FG-26 Carrying Handle
FV-05C AC Adaptor (110V) - Standard with unit
FV-06 AC Adapter (220V)
HVW-16SSC Swivel/Lock Caster for 30 lb & below capacities (each)

HVW-17LSC Swivel/Lock Caster (each)

AD-8951 Comparator Light Tower

AX-USB-2920-DIN USB to DIN RS-232 Converter
