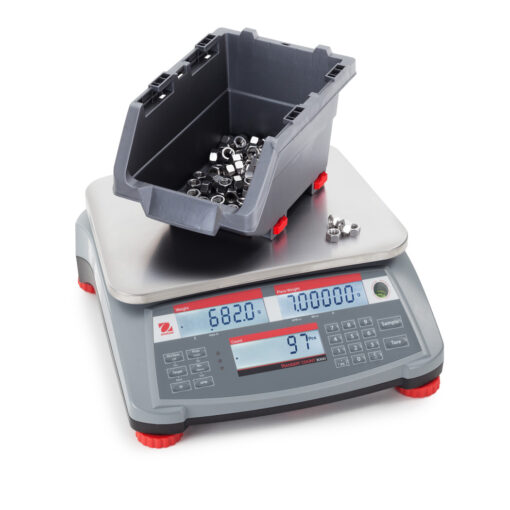

Ranger 3000 with nuts
Ranger 3000 Compact Counting Scale

Ranger 3000 Compact Counting Scale

The multipurpose Ranger Count 3000 has all of the capabilities to produce precise results rapidly for a variety of applications. With weighing, parts counting, check counting, and accumulation functions, Ranger Count 3000 is the ideal scale to meet many industrial counting needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger Count 3000 to a class of its own.

Categories: , , , , , ,

Description

  • Precise Counting and Weighing Performance with 30 Item Library—Accurate weighing and counting performance is assured through Ranger Count 3000’s high resolution, 30 item library data storage function and auto-optimization software that reduces errors and ensures accuracy.
  • The Most User Friendly Counting Scale on the Market—The three backlit LCD displays, including a centrally located count display, along with an easy-to-navigate menu, make Ranger Count 3000 extremely simple to use and increase the proficiency of weighing and counting operations.
  • Rapid Stabilization Provides Unmatched Throughput—View your results in just one second, and then see your efficiency, throughput and productivity soar!
  • Precise Counting and Weighing -Features advanced auto-optimization software which recalculates the average piece weight as the overall weight increases, ensuring accuracy and minimizing counting errors.
  • 30 Item Library – Has a 30 item library data storage function that can store 12-digit part numbers, average piece weights, checkcounting or checkweighing parameters, tare weights and accumulated weights or counts for quick and simple retrieval of frequently used data.
  • Many Connectivity Options -offers the highest level of connectivity in its class through its Standard RS232 with optional Ethernet, second RS232, or USB that offers connection to multiple peripherals & can also support two-scale counting through the Optional 2nd Platform.
  • Combine Ranger with New Statistics printer & keep track of information critical for SQC processes.
  • Measurement Canada Certified
  • NTEP Certified
  • 1 year warranty
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
RC31P1502 Ranger 3000 3 lb capacity 1.5 kg × 0.0005 kg; 3 lb × 0.001 lb; 1500 g × 0.5 g; 48 oz × 0.02oz 11.8 × 8.9" LCD kg; g; lb; oz; lb:oz Rechargeable 12.2 × 12.9 × 4.6" 12 Lbs
RC31P3 Ranger 3000 6 lb capacity 3 kg × 0.001 kg; 6 lb × 0.002 lb; 3000 g × 1 g; 96 oz × 0.05oz 11.8 × 8.9" LCD kg; g; lb; oz; lb:oz Rechargeable 12.2 × 12.9 × 4.6" 12 Lbs
RC31P6 Ranger 3000 15 lb capacity 6 kg × 0.002 kg; 15 lb × 0.005 lb; 6000 g × 2 g; 240 oz × 0.1oz 11.8 × 8.9" LCD kg; g; lb; oz; lb:oz Rechargeable 12.2 × 12.9 × 4.6" 12 Lbs
RC31P15 Ranger 3000 30 lb capacity 15 kg × 0.005 kg; 30 lb × 0.01 lb; 15000 g × 5 g; 480 oz × 0.2oz 11.8 × 8.9" LCD kg; g; lb; oz; lb:oz Rechargeable 12.2 × 12.9 × 4.6" 12 Lbs
RC31P30 Ranger 3000 60 lb capacity 30 kg × 0.01 kg; 60 lb × 0.02 lb; 30000 g × 10 g; 960 oz × 0.5oz 11.8 × 8.9" LCD kg; g; lb; oz; lb:oz Rechargeable 12.2 × 12.9 × 4.6" 12 Lbs

https://www.pennscale.com/wp-content/uploads/2013/10/Ranger-3000-new-1.pdf

Manual
