Pennsylvania Scale 7500 Series Counting & Bench Scale

$820.00

$820.00

Select options

Pennsylvania Scale 7500 Series Counting & Bench Scale

$820.00

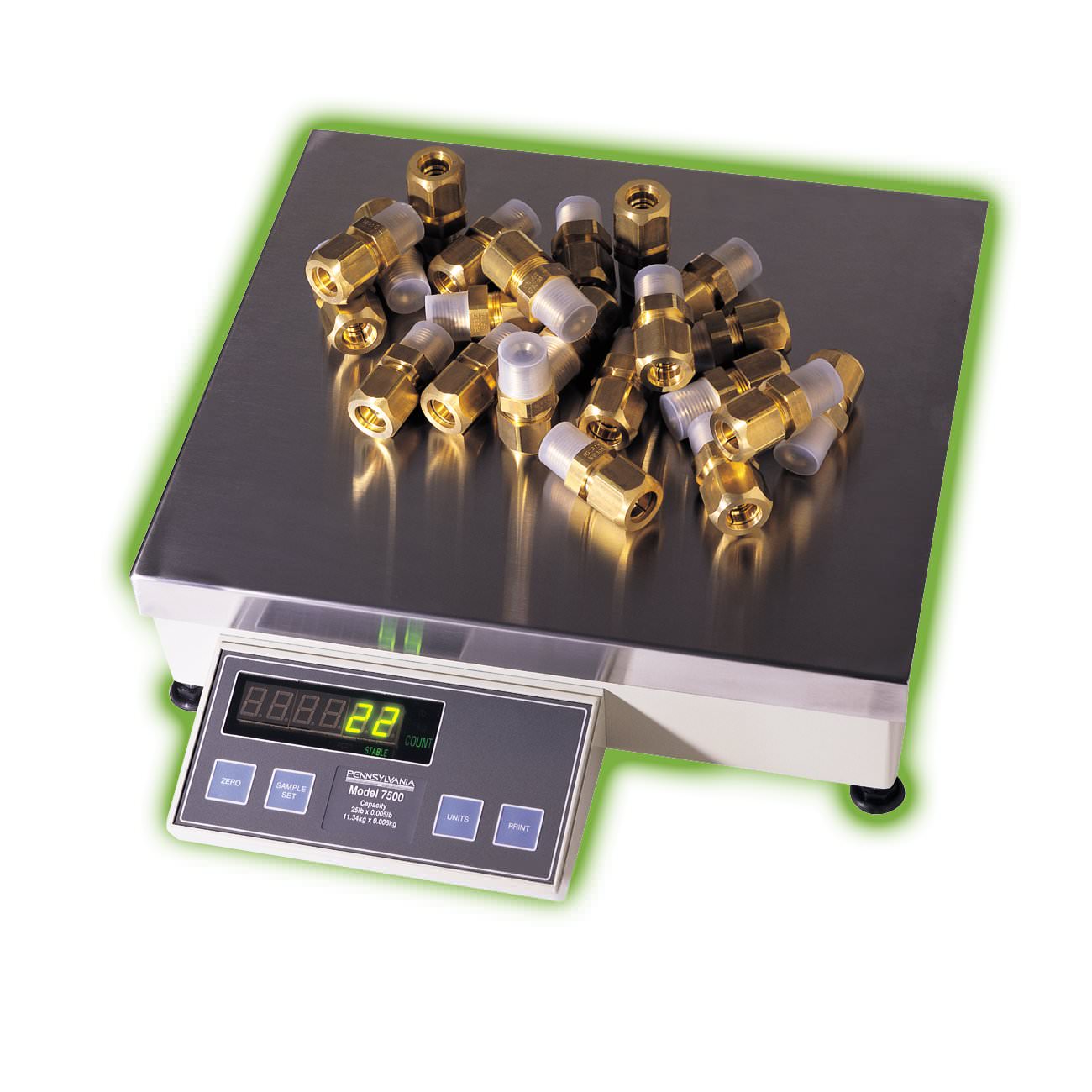

The Pennsylvania Scale 7500 Counting / Bench Scale is easy to use and highly accurate. Simplified operation, extra heavy and rugged die cast aluminum construction make the 7500 the choice for fast, superb and accurate counting resolution.

The easy to use design includes sample sizes of 10-20-50-100 pieces and Auto Sample Update ™ feature. Designed for 20 year service life, not to be confused with lightweight disposable low resolution units.

Product Manufacturer: Pennsylvania Scale

Description

Weighs in two units of measure or COUNT
NTEP Certified
8 capacities from 2-200 lbs
Optional AC/DC power with heavy duty power cord, self contained, provides 24-30 hours use/charge
One Button Counting Feature
(2) standard weight units can be provided as Primary and Secondary units of measure: Other weight units & resolutions including Lb/Oz—can be specified with order
Exclusive Four Year Warranty
Made in Lancaster, Pennsylvania using all USA made parts

Additional information

Model 7500

7500-2, 7500-5, 7500-10, 7500-20, 7500-50, 7500-100, 7500-150, 7500-200

Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
7500-02 2 lb Capacity-Aluminum Platform-NTEP 2 x 0.0002 lb; 907.2 x 0.1 g 8"(w) x 8"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-05 5 lb Capacity-Aluminum Platform-NTEP 5 x 0.0005 lb; 2268 x 0.2 g 8"(w) x 8"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-10 10 lb Capacity-SS Platform-NTEP 10 x 0.001 lb; 4536 x 0.5 g 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-20 20 lb Capacity-SS Platform-NTEP 20 x 0.002 lb; 9.072 x 0.001 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-50 50 lb Capacity-SS Platform-NTEP 50 x 0.005 lb; 22.68 x 0.005 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-100 100 lb Capacity-SS Platform-NTEP 100 x 0.01 lb; 45.36 x 0.005 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-150 150 lb Capacity-SS Platform-NTEP 150 x 0.02 lb; 68.04 x 0.01 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7500-200 200 lb Capacity-SS Platform-NTEP 200 x 0.02 lb; 90.72 x 0.01 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs

Brochure

Manual

7500 Quick Star Instructions

Ethernet Option - XPort

Lantronic XPort

Scaime

*(2) standard weight units can be provided as Primary and Secondary units of measure: Other weight units & resolutions including Lb/Oz—can be specified with order – consult factory.

AC/DC Operation - - 30+ hours continuous use with integrated recharging and HD power cord; functions as an U.P.S.

REMOTE DISPLAY CASTING - Primary display casting is remoted w/ 10’ cable. Ideal for custom work stations or where items block the display

2nd REMOTE DISPLAY (casting) - Plug & play REMOTE casting for a total of (2) displays with button functions; 10’ cable

57825 - 220/230 Volt Power

TD - Time and Date printing

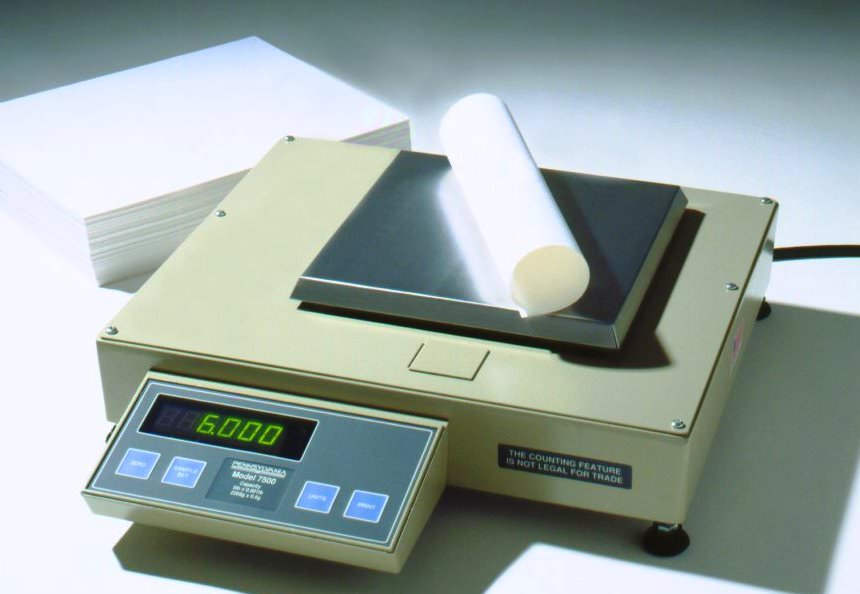

MDL 7500-5 BW BASIS WEIGHT SCALE - 5 x .005 lb—Used to calculate REAM WEIGHT of 480, 500, or 1000 sheet reams

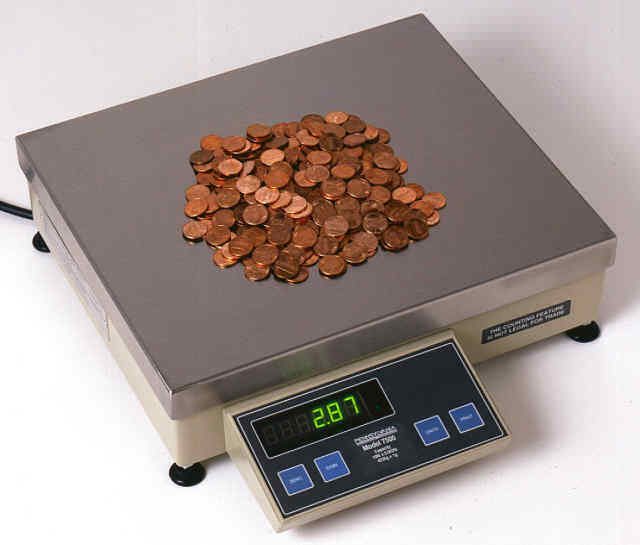

MDL 7500 MM MONEY MANAGER - Weight count COINs within preset coin APW (can be modified) x 4 coins

57520 - Replacement Battery Pack for AC/DC units

56750-5 Ball Top - Ball Transfer Top Plate, 12 x 14” in place of std. SS platform – 50 lb and up models only

AO – ANALOG OUTPUT or 57811 FIELD KIT - Jumper select 0-10 VDC or 4-20 mA proportional output via 2 post terminals

ETHERNET MODULE or 57869A FIELD KIT - Lantronix Xport module and option board includes software license & IP address

SAE SPECIAL APPLICATIONS - Many standard or optional special operational features can be flashed-in using Serial Data Loader feature

57520 - Replacement Battery Pack for AC/DC units
