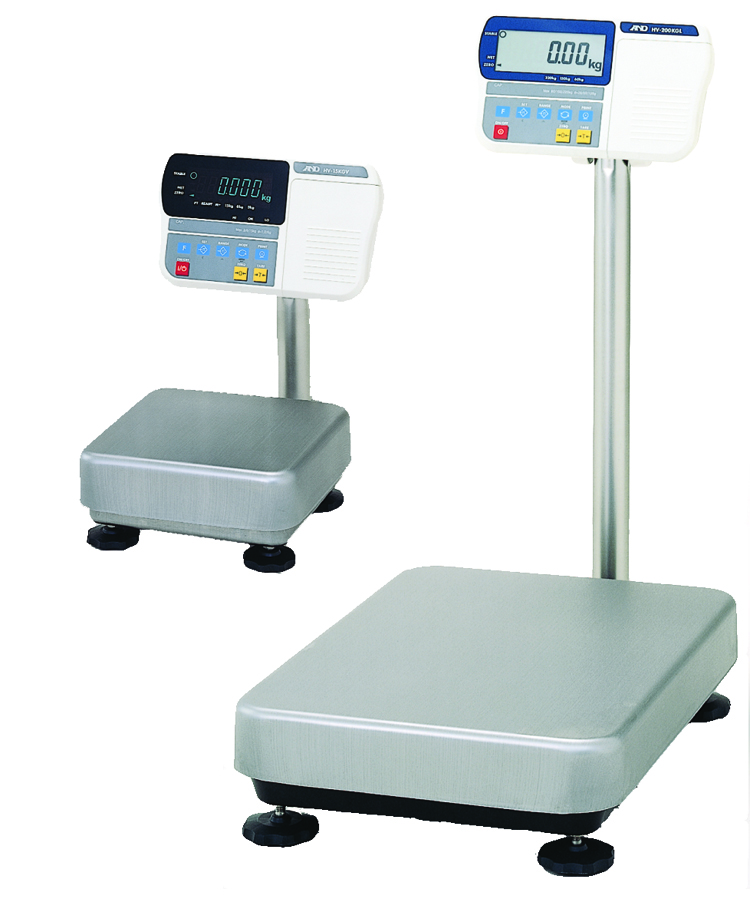

HV-G Series Bench Scale
A & D HV Series Bench Scales
The HV-G Series Triple Range, NTEP Certified platform scales provide counting, percentage, and comparator functions. These versatile scales are useful for Food Processing, Fish Industry, Shipping & Receiving, parts counting, Pharmaceutical & Paint Mixing.
OR CALL NOW: 215-739-9644
Description
- All Models are available with or without columns.
- lb, kg, oz Comparator/Counting/Percentage Modes
- Built-in Printer Option (KGV models) & Standard RS-232C Interface
- LCD or VFD Display
- Works with WinCT Software
- Battery Operation (KGL models); AC Mains Power for KGV models
- Comparator for setting high and low weight targets
- Triple Range Resolution changes automatically for 3 capacity levels.
- Optional comparator buzzer for selected settings
- Setpoint control for simple batching
- Tilting meter head for best viewing angle
- Water and Dust Resistant Stainless Steel Weighing Pan Sanitary, clean, safe & easy to clean.
- The stainless steel weighing pan and sealed base are resistant to water and dust (IP-65).
- Water and Dust Resistant A Gore-Tex® membrane helps protect the load cell sensor.
- Measurement Canada Certified-certain models
- NTEP Certified-certain models
- 2 year warranty
Summary
Author Rating
Aggregate Rating
no rating based on votes
Product Name
HV-G Series Bench Scale
Technical Specs
| Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| HV-15KGL | HV-G Series Bench Scale - NTEP Certified | 6/15/30lb x .002/.005/.01lb 3/6/15kg x .001/.002/.005kg | 9.8(W) x 9.8(D)" | LCD | kg; lb; oz; lb-oz | AC Adapter or 6 “D” size alkaline batteries | 10.8 x 18.7 x 14.5" | 14 Lbs |
| HV-60KGL | HV-G Series Bench Scale - NTEP Certified | 30/60/150lb x .01/.02/.05lb; 15/30/60kg x .005/.01/.02kg | 12.95(W) x 16.69(D)" | LCD | kg; lb; oz; lb-oz | AC Adapter or 6 “D” size alkaline batteries | 13.0(W) x 24.4(D) x 30.4(H)" | 25 Lbs |
| HV-200KGL | HV-G Series Bench Scale - NTEP Certified | 150/300/500lb x .05/0.1/0.2lb; 60/150/220kg x .02/.05/.1kg | 15.35(W) x 20.87(D)" | LCD | kg; lb; oz; lb-oz | AC Adapter or 6 “D” size alkaline batteries | 15.4(W) x 28.0(D) x 30.4(H)" | 38 Lbs |
| HV-15KGV | HV-G Series Bench Scale - NTEP Certified-Built-in printer option | 6/15/30lb x .002/.005/.01lb 3/6/15kg x .001/.002/.005kg | 9.8(W) x 9.8(D)" | VFD | kg; lb; oz; lb-oz | 120 VAC | 10.8 x 18.7 x 14.5" | 14 Lbs |
| HV-60KGV | HV-G Series Bench Scale - NTEP Certified-Built-in printer option | 30/60/150lb x .01/.02/.05lb 15/30/60kg x .005/.01/.02kg | 12.95(W) x 16.69(D)" | VFD | kg; lb; oz; lb-oz | 120 VAC | 13.0(W) x 24.4(D) x 30.4(H)" | 25 Lbs |
| HV-200KGV | HV-G Series Bench Scale - NTEP Certified-Built-in printer option | 150/300/500lb x .05/0.1/0.2lb 60/150/220kg x .02/.05/.1kg | 15.35(W) x 20.87(D)" | VFD | kg; lb; oz; lb-oz | 120 VAC | 15.4(W) x 28.0(D) x 30.4(H)" | 38 Lbs |
Options
HVWP-02 Display Extension Cable (17’)
HVW-03G Comparator/Setpoint Relay Outputs w/ RS-232C
HVW-04G RS-422/485 Interface
HVW-06G Built-in Printer for HV-GV & HW-GV models
HVW-16SSC Swivel/Lock Caster for 30 lb & below capacities (each)
HVW-17LSC Swivel/Lock Caster for above 30 lb capacities (each)
AD-8951 Comparator Light (While Supplies Last)
FG-01 Display Wallmount Kit
FV-05C AC Adapter (110V) for HV-GV & HW-GV models – Standard with unit
FV-06 AC Adapter (220V) for HV-GL & HW-GL models
FT:10 2.5” Diameter Non-Skid Foot
AX-USB-2920-DIN USB to DIN RS-232 Converter
More Information
PLEASE CALL US FOR ADDITIONAL PRODUCT INFORMATION
215-739-9644
