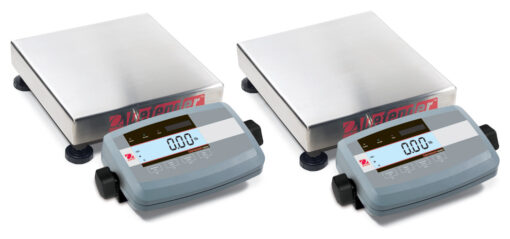

Defender 5000 Low Profile Scales

The OHAUS DefenderTM 5000 Series is a feature-rich line of bench scales, combining an ABS plastic T51P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 5000 offers a multifunctional indicator with multiple weighing units and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of demanding industrial operations.

Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

  • Painted steel bases with ABS indicator
  • Baker’s Percentage and Display Hold software included
  • 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
  • 1:5,000 NTEP Certified / Measurement Canada Approved for square bases, up to 1:3,000 for rectangular bases
  • Quick display of results using large LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode using quick key press
  • Easy to operate with 4-key membrane keypad with raised tactile keys
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold
  • Internal power supply with universal line cord or 6 ā€œCā€ batteries (80 hour battery life) ā€“ optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time
  • Base and indicator connected using quick connect plug
  • Optional interfaces include DC relay control kit, AC relay control kit, 2nd RS232 and RS485/422
  • 1 year warranty
Summary
product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
Defender 5000 Low Profile Scales
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
D51P10QR5 Defender 5000 Square Bench Scales 25 lb x 0.005 lb 10 kg x 0.002 kg 12 x 12" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 12 x 3.7 x 12 x 20.8" 36 Lbs
D51P250QR5 Defender 5000 Square Bench Scales 50 lb x 0.01 lb 25 kg x 0.005 kg 12 x 12" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 12 x 3.7 x 12 x 20.8" 36 Lbs
D51P50QL5 Defender 5000 Square Bench Scales 100 lb x 0.02 lb 50 kg x 0.01 kg 18 x 18" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 18 x 4.5 x 18 x 26.8" 69 Lbs
D51P100QL5 Defender 5000 Square Bench Scales 250 lb x 0.05 lb 100 kg x 0.02 kg 18 x 18" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 18 x 4.5 x 18 x 26.8" 69 Lbs
D51P250QX5 Defender 5000 Square Bench Scales 500 lb x 0.10 lb 250 kg x 0.05 kg 24 x 24" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 24 x 5.4 x 24 x 32.8" 95 Lbs
D51P15HR5 Defender 5000 Rectangular Bench Scales 30 lb x 0.01 lb 15 kg x 0.005 kg 12 x 14" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 19.3 x 16.1 x 17.3" 36 Lbs
D51P30HR5 Defender 5000 Rectangular Bench Scales 60 lb x 0.02 lb 30 kg x 0.01 kg 12 x 14" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 19.3 x 16.1 x 17.3" 36 Lbs
D51P60HR5 Defender 5000 Rectangular Bench Scales 150 lb x 0.05 lb 60 kg x 0.02 kg 12 x 14" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 19.3 x 16.1 x 17.3" 36 Lbs
D51P60HL5 Defender 5000 Rectangular Bench Scales 150 lb x 0.05 lb 60 kg x 0.02 kg 15.7 x 19.7" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 15.7 x 4.1 x 19.7 x 28.5" 54 Lbs
D51P100HL5 Defender 5000 Rectangular Bench Scales 250 lb x 0.1 lb 100 kg x 0.05 kg 15.7 x 19.7" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 15.7 x 4.1 x 19.7 x 28.5" 54 Lbs
D51P150HX5 Defender 5000 Rectangular Bench Scales 300 lb x 0.1 lb 150 kg x 0.05 kg 16.5 x 21.7" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 16.5 x 4.9 x 21.7 x 30.5" 65 Lbs
D51P300HX5 Defender 5000 Rectangular Bench Scales 600 lb x 0.2 lb 300 kg x 0.1 kg 16.5 x 21.7" LCD kg; g; lb; oz; lb:oz (decimal) AC/DC 16.5 x 4.9 x 21.7 x 30.5" 65 Lbs
