2200CW-Checkweigh Scale

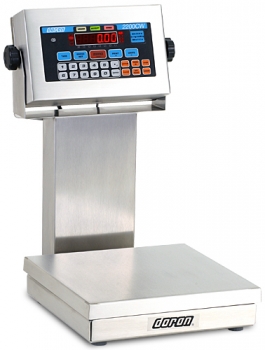

Doran 2200CW Checkweigh Scale

Store, recall, and weigh with the Doran 2200CW built-in database! This internal database will store up to 250 Checkweigh Tolerances, Tare Weights, Accumulation and Counter totals, and six-digit Product IDs. Recalling a product from the database is as simple as pressing the PROD button and entering the product ID.

Adding new products or maintaining existing products is quickly accomplished through the keypad or through the optional CheckWay Windows™-compatible software. The data is password-protected to ensure that your products are checkweighed properly every time.

Handwritten production records to track weighments or accumulated weight are a thing of the past with the 2200CW Checkweigher. The counter memory stores the number of weighments. Recalling the accumulated weight at the end of a pallet load of product or at the end of the shift is as simple as pushing a button.

Versatile Communication Options
Connect with any device or computer using the two standard RS-232 ports, or with the optional Wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485, or Fiber Optic. Communicate with flexible and user-definable data strings to include standard scale information, product ID, and product description. This allows for an easy interface with barcode printers, data collection systems, or other remote devices.

CheckWay Software
It’s never been easier to upload, download, and maintain checkweigh tolerances than it is now with CheckWay. This optional software is designed for use with the 2200CW Checkweigher's internal database through standard or optional communication choices. Simply enter the product ID, Description field, Checkweigh parameters, and Tare weights, and then select the scale(s) to upload to or download from. Scale setup files are saved on the PC, so configuring several scales with identical data is easy and accurate. Programming hundreds of product parameters takes minutes instead of hours.

Guardian Harsh Environment Protection System
Engineered to thrive in the harshest of working environments, the Model 2200CW features the Guardian Harsh Environment Protection System. All the components of this system act as your defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime.

1000% Overload Base
No, that's not a typo! Our unique “Quad-Spring” design protects the sensitive load cell from shock and overload damage. Protected to a maximum of ten times the base load rating, this design sets the new industry standard—a feature available only from Doran. Take a “peek under the hood” to see what's inside our DXL scale base.

Categories: , , , , , , ,
  • 250 Product Memory (PLU’s)
  • Internal Relays & External Relays
  • 304 Stainless Steel Construction
  • 6 Digit, Red LED, 0.56” High
  • Output: Bi-directional RS-232 & 8 Digital Outputs
  • 115 VAC (230 VAC Optional); EMI/ESD protected
  • Wired Ethernet Network Data Communications & Wireless Ethernet Network Data Communications
  • USB Data Interface & Fiber Optic Interface
  • Heavy Duty Barcode Scanner & Standard Barcode Scanner
  • 4-20mA Analog Output & Modbus/TCP
  • Digital Output Board
  • Thermal Label Printer
  • Remote Display
  • Remote Switch Cable Quick Disconnect & Serial Data Cable Quick Disconnect
  • Remote Switches
  • Checkway Configuration Software, Excelerator Data Collection Software & QC Weigh Software
  • Light Tower
  • Stainless Steel Load Cell
  • Audible Alarm Options (External or Internal)
  • 230 VAC Operation, External DC Power (12 VDC) & Internal Rechargeable Battery Power
  • Load Cell Cable Quick Disconnect
  • RS-232 Cable RS-485 Serial Data Output
  • ISO9000 Certified
  • NTEP Certified
  • 2 year warranty
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions
22002CW 2200CW-Checkweigh Scale; precision resolution 2 x 0.0005; 0.9kg x 0.2g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22005CW 2200CW-Checkweigh Scale; precision resolution 5 x 0.001; 2.3kg x 0.5g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22010CW 2200CW-Checkweigh Scale; precision resolution 10 x 0.002; 4.5kg x 1g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22025CW 2200CW-Checkweigh Scale; precision resolution 25 x 0.005; 11.3kg x 2g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CW 2200CW-Checkweigh Scale; precision resolution 50 x 0.01; 22.7kg x 5g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CW/12 2200CW-Checkweigh Scale; precision resolution 50 x 0.01; 22.7kg x 5g 12 x 12" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22100CW/12 2200CW-Checkweigh Scale; precision resolution 100 x 0.02; 45kg x 10g 12 x 12" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CW/15 2200CW-Checkweigh Scale precision resolution 50 x 0.01; 22.7kg x 5g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22100CW/15 2200CW-Checkweigh Scale precision resolution 100 x 0.02; 45kg x 10g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22200CW/15 2200CW-Checkweigh Scale; precision resolution 200 x 0.05; 91kg x 20g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22002CWSP 2200CW-Checkweigh Scale; super precision resolution 2 x 0.0002; 0.9kg x 0.1g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22005CWSP 2200CW-Checkweigh Scale; super precision resolution 5 x 0.005; 2.3kg x 0.2g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22010CWSP 2200CW-Checkweigh Scale; super precision resolution 10 x 0.001; 4.5kg x 0.5g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22020CWSP 2200CW-Checkweigh Scale; super precision resolution 20 x 0.002; 9.1kg x 1g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CWSP 2200CW-Checkweigh Scale; super precision resolution 50 x 0.005; 22.7kg x 2g 10 x 10" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CWSP/12 2200CW-Checkweigh Scale; super precision resolution 50 x 0.005; 22.7kg x 2g 12 x 12" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22100CWSP/12 2200CW-Checkweigh Scale; super precision resolution 100 x 0.01; 45kg x 5g 12 x 12" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22050CWSP/15 2200CW-Checkweigh Scale; super precision resolution 50 x 0.005; 22.7kg x 2g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22100CWSP/15 2200CW-Checkweigh Scale; super precision resolution 100 x 0.01; 45kg x 5g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"
22200CWSP/15 2200CW-Checkweigh Scale; super precision resolution 200 x 0.05; 91kg x 20g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3"; Column-20"

https://www.pennscale.com/wp-content/uploads/2014/05/2200CW_Brochure.pdf

5 Benefits of Using a Checkweigher Scale
Facebook iconTwitter iconLinkedIn iconShare on Google+
Doran Checkweigher scales are different than basic scales, because they have a programmable tolerance and advanced features that no other manufacturer offers. The tolerance allows an operator to input a range of weight and will indicate through different colored lights whether the item weighed is within that tolerance, above, or below the target.

Checkweigher Scale BenefitsThey have been used by companies in a number of different industries, including industrial, chemical engineering and the food industry, and have been beneficial for those companies. Here are five benefits of using a Checkweigh Scale.

1. Enhances Accuracy and Reduces Product Giveaway

The main benefit of using a Checkweigher scale is savings. The ability to produce a product at an accurate weight leads to bottom line savings because materials are not wasted and processes do not need to be repeated. In many cases these weighments are so critical, that they determine whether a plant is profitable or not.

For example, a mushroom grower used a Doran Checkweigher scale to eliminate waste during packing. By reducing over packing, they were able to increase productivity by 5,000 lbs. a day and save $39,600 over the course of a year.

2. Ensure Product Quality

The weight of a product is one of the vital benchmarks that is measured during the quality control process, whether it is for a consumable good or an automotive part. Being able to make an accurate, fast measurement that is sent to a PC for statistical analysis is one of the key functions of quality control.

A baker used a Doran Checkweigher scale while baking their English muffins. The company uses a machine to separate their dough into balls that are then baked into the muffins. If the dough balls are overweight, they will not cook all the way through and reduces profitability. If the dough balls are underweight, they will be overcooked. Using a Checkweigher scale helps the bakery to check the weight of the dough throughout the process and recognize any problems early.

3. Meet Regulatory Requirements

Using a Checkweigher scale helps to guarantee accuracy in weight. This is especially important for companies who sell products at a retail level where there is a product weight shown on the package. Each state in America has a different regulatory agency which is responsible for testing the weights of products. If products are over or underweight, the agency can enforce significant fines on the producer. Measuring throughout the manufacturing process is a great way to ensure that this doesn’t happen.

4. Provide Accurate Data to Better Manage a Process

A Checkweigher can be an important part of the quality control process. Weighing ingredients, following a formula, and weighing the finished product gives management the opportunity to check all aspects of the production process. They can identify which parts are running well and which need improvement.

In the baking example from earlier, if the baker find inconsistencies in the size of the dough balls, it is an indication that the machine is not running correctly. This indication can help them better manage their production process and improve it.

5. Track Productivity

Some systems can also track an operator’s output. This provides management with information on who measured, how long it took, when they started, and when they finished measuring. The systems provide actionable data and information which allows businesses to improve productivity and their processes.
