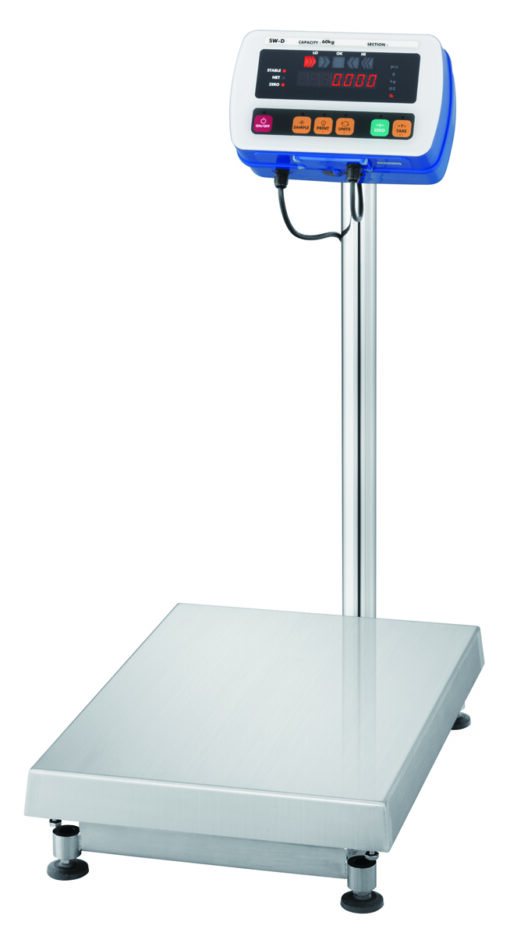

SW Series-High Pressure Washdown Scale-NTEP

A&D SW Series High Pressure Washdown Scale

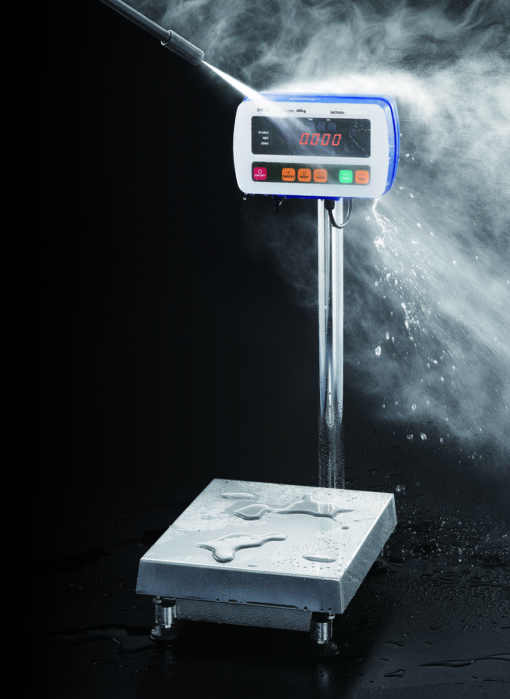

The A&D SW Super Washdown scales are designed to withstand the most demanding process conditions. From dusty to wet environments, including food processing plants where cleanliness and sanitation are of critical importance, the SW scales are built to endure the extreme conditions of high pressure and temperature water as specified by the P69K standard (1450 psi and 175°F).

Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

  • IP69K – the highest level of dust and water-proofing
  • Ultimate protection against the effects of condensation
  • Streamlined construction for easy cleaning
  • Stainless steel weighing pan, frame, and hermetically sealed load cell
  • Rugged and adjustable indicator bracket
  • Capactive keys for light touch operation
  • Bright, multicolored LED display with 5-level comparator lights
  • Optional rechargeable battery
  • RS-232C/comparator outputs, desktop/wall-mount bracket available
  • Measurement Canada Certified
  • NSF Certified
  • NTEP Certified
  • 1 year warranty
Summary
product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
SW Series-High Pressure Washdown Scale-NTEP
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
SW-6KS SW Series-High Pressure Washdown Scale-NTEP 13 lb x 0.001 lb / 6 kg x 1 g 9.8” x 9.8” LED lb; oz; kg; g & lb-oz AC main or optional battery 9.8(W) x 18.9(D) x 13.9(H)" 25 Lbs
SW-15KS SW Series-High Pressure Washdown Scale-NTEP 33 lb x 0.002 lb / 15 kg x 2 g 9.8” x 9.8” LED lb; oz; kg; g & lb-oz AC main or optional battery 9.8(W) x 18.9(D) x 13.9(H)" 25 Lbs
SW-15KM SW Series-High Pressure Washdown Scale-NTEP 33 lb x 0.002 lb / 15 kg x 2 g 11.8” x 15.0” LED lb; oz; kg; g & lb-oz AC main or optional battery 11.8(W) x 23.7(D) x (28.4)" 39 Lbs
SW-30KM SW Series-High Pressure Washdown Scale-NTEP 66 lb x 0.005 lb / 30 kg x 5 g 11.8” x 15.0” LED lb; oz; kg; g & lb-oz AC main or optional battery 11.8(W) x 23.7(D) x (28.4)" 39Lbs
SW-60KM SW Series-High Pressure Washdown Scale-NTEP 130 lb x 0.01 lb / 60 kg x 10 g 11.8” x 15.0” LED lb; oz; kg; g & lb-oz AC main or optional battery 11.8(W) x 23.7(D) x (28.4)" 39Lbs
SW-150KM SW Series-High Pressure Washdown Scale-NTEP 330 lb x 0.02 lb / 150 kg x 20 g 11.8” x 15.0” LED lb; oz; kg; g & lb-oz AC main or optional battery 11.8(W) x 23.7(D) x (28.4)" 39Lbs
SW-60KL SW Series-High Pressure Washdown Scale-NTEP 130 lb x 0.01 lb / 60 kg x 10g 15.4” x 20.9” LED lb; oz; kg; g & lb-oz AC main or optional battery 15.4(W) x 29.6(D) x 28.4(H)" 49 Lbs
SW-150KL SW Series-High Pressure Washdown Scale-NTEP 330 lb x 0.02 lb / 150 kg x 20 g 15.4” x 20.9” LED lb; oz; kg; g & lb-oz AC main or optional battery 15.4(W) x 29.6(D) x 28.4(H)" 49 Lbs

SW-03 RS-232C plus compatator relay output
SW-04 RS-422/485
SW-D SW Indicator
SW-11 Wall mount bracket
HC-06i Rechargeable Battery Pack

PLEASE CALL US FOR ADDITIONAL PRODUCT INFORMATION

215-739-9644
