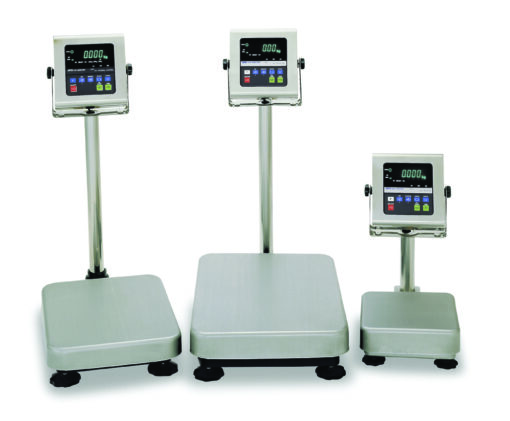

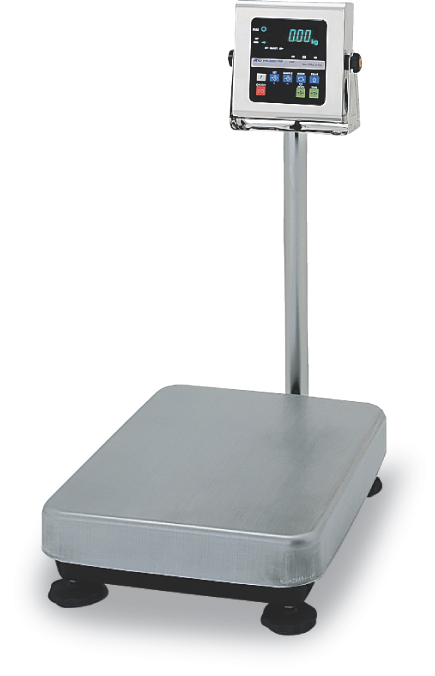

HV-WP Series-Washdown Scale (Triple Range)
Durable, Dustproof & Waterproof stainless steel scales for use in a wide variety of applications that are NTEP Certified.
OR CALL NOW: 215-739-9644
Description





- Available with or without a column; cable length is 10′ between base & indicator
- Washdown (IP-65 / NEMA4 rated)
- Comparator Mode – Sets the high and low weight targets and shows HI/OK/LO on the display
- Comparator Buzzer Optional comparator output sounds at user defined setting
- Bright VFD Display
- Triple Range Resolution changes automatically for 3 capacity levels
- Standard RS-232C Interface
- Lb, oz, Percentage and Counting Modes
- Works with WinCT Software
- Measurement Canada Certified
- NTEP Certifieed
- 2 Year Warranty
Summary

Author Rating





Aggregate Rating
no rating based on 0 votes
Product Name
HV-WP Series-Washdown Scale (Triple Range)
Technical Specs
Model # | Description | Capacity | Platter Size | Display | Unit of Measure | Battery | Dimensions | Shipping Weight |
---|---|---|---|---|---|---|---|---|
HV-15KWP | HV-WP Series-Washdown Scale (Triple Range) | 6/15/30lb x 0.002/0.005/0.01lb; 3/6/15/kg x .001/.002/.005kg | 9.8” x 9.8” | VFD | Lb; kg; oz & lb-oz | AC | 9.8(W) x 18.3(D) x 17.2(H)" | 17 Lbs |
HV-60KWP | HV-WP Series-Washdown Scale (Triple Range) | 30/60/150lb x 0.01/0.02/0.05lb; 15/30/60kg x .005/.01/.02kg | 13” x 16.7” | VFD | Lb; kg; oz & lb-oz | AC | 13.0(W) x 24.2(D) x 30.9(H)" | 29 Lbs |
HV-200KWP | HV-WP Series-Washdown Scale (Triple Range) | 150/300/500lb x 0.05/0.1/0.2lb; 60/150/220kg x .02/.05/.1kg | 15.4” x 20.9” | VFD | Lb; kg; oz & lb-oz | AC | 15.4(W) x 27.6(D) x 30.9(H)" | 42 Lbs |
Options
HVWP-02 Display Extension Cable (17’)
HVWP-03 RS-232C & Comparator/Setpoints (relays & buzzer)
HVWP-04 RS-422/485 & Comparator/Setpoints (relays)
HVW-16SSC Swivel/Lock Caster for 30 lb & below capacities (each)
HVW-17LSC Swivel/Lock Caster for above 30 lb capacities (each)
FT:10 2.5” Diameter Non-Skid Foot (each)
AD-8951 Comparator Light (While Supplies Last)
AX-USB-2920-DIN USB to DIN RS-232 Converter
AX-043005266 Mounting Bracket
More Information
PLEASE CALL US FOR ADDITIONAL PRODUCT INFORMATION
215-739-9644
