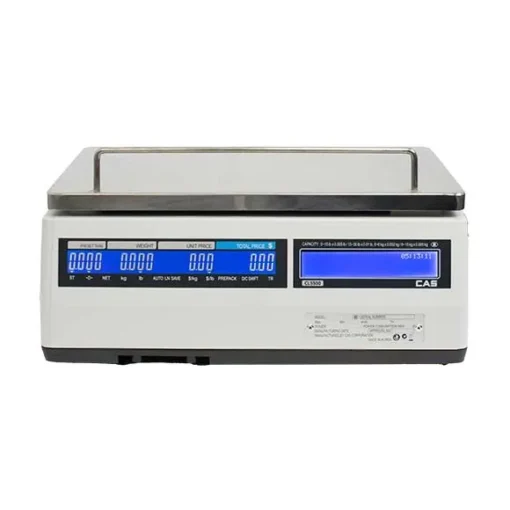

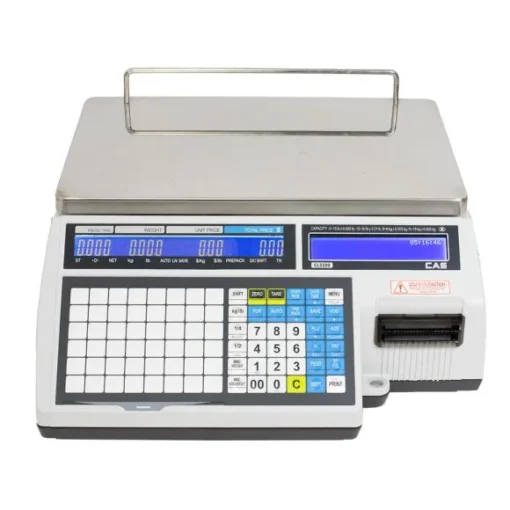

CL-5500B Label Printing Scale

Displays

The CL5500 is equipped with two high quality, easy to read LCD Displays.The operator side displays are used to show Tare Weight, Unit Weight, Unit Price and Total Price on the left. The display on the right is used to display PLU names, Scrolling Messages and Programming Menus.

Keyboard

The Double Click Call feature allows the operator to recall PLUs by double-clicking the speed key instead of having to use the shift key. The standard Bench Model comes equipped with 96 (48 x 2) quick look up keys while the Pole and Hanging Models have 144 (72 x 2). These keys may also be programmed to be special function keys.

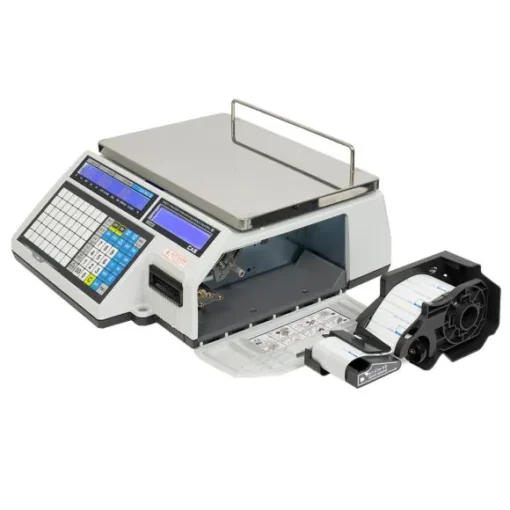

Printer & Label Cartridge
Achieve print speeds up to 100 mm/sec with a print resolution of 202 dpi. The removable label cartridge’s simple design allows operators a method of quickly and easily reloading labels.

Label Formats

The CL5500 supports various die cut or continuous label sizes up to 200mm in length with the 50 preset label formats stored in its memory.
With CL -Works Pro software, you can add up to 20 more custom label formats.

Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

SPECIFICATIONS Model CL5500-B CL5500-R CL5500-H Weighing Capacity 30 lb Capacity Dual Range 0 - 15 x 0.005 lbs / 15 - 30 x 0.01 lbs - 0 - 6 x 0.002 kg / 6 - 15 x 0.005 kg 60 lb Capacity Dual Range 0 - 30 x 0.01 lbs / 30 - 60 x 0.02 lbs - 0 - 15 kg x 5 g / 15 - 30 kg x 10g Measurement Type Load Cell Display Type LCD & Alphanumeric Display Digit 4/4/6/6 - Tare/Weight/Unit Pr/Total Pr Weight Units lb or kg Printer Thermal Print Label Size Width: 40mm ~ 60mm - Length: 30mm ~ 200mm Barcode Formats UPC-A, UPC13, EAN13, EAN13+5, I2of5, Code128, Code93, Codabar, and more Interface RS-232C / TCP/IP / USB Keyboard Interface PS/2 Power Source AC 100 ~ 240V, 50/60Hz Operating Temp -10°C ~ 40°C / 14°F ~ 104°F Platter Size (in/mm) (W) x (D) 15 x 9.6 381 x 244 15 x 9.6 381 x 244 15.3 x 11.06 389 x 281 Dimensions (in/mm) (W) x (D) x (H) 16 x 17 x 6.8 406.4 x 432 x 173 16 x 17 x 23.9 406.4 x 432 x 607 16.5 x 11.06 x 27.8 420 x 281 x 706 Product Weight 24 lbs (10.9 kg) 25 lbs (11.3 kg) 31.3 lbs (14.2 kg) • Works with CL-Works Pro Software PLU Editor - Label Editor - Keypad Editor Compatible with Microsoft Windows® 7/8/10 • Approvals - NTEP COC # 07-042A4 Measurement Canada - Pending • Wireless Networking • Full Body Protective Cover • Fish Pan DIMENSIONS Units: Inches(mm) B R H Features Options RP MODEL CL5500-RP Remote Platform Max. Capacity 30 kg / 60 lb Weighing Capacity Dual Range 0 - 15 x 0.05 lbs / 30 - 60 x 0.1 lbs 0 - 15 x 0.002 kg / 15 - 30 x 0.005 kg Platter Size 15.75 x 11.8 x 3.4(H) 400 x 300 x 86(H)
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
CM-101 NTEP Certified 30 lb capacity Price computing 30 x 0.01 lb 15 x 0.005 kg 11.8" (w) x 9.8" (d) LCD front & back Lb; Kg Rechargeable 12.5" x 13.1" 8 Lbs
CL-5000R price computing scale
CL-5000R price computing scale
CL5000H price computing scale
CL5000H price computing scale

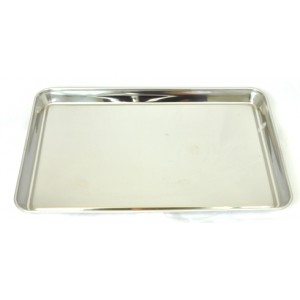

tcl2 fish pan
tcl2 fish pan
LST-8000 labels
LST-8000 labels
LST-8010 UPC label
LST-8010 UPC label

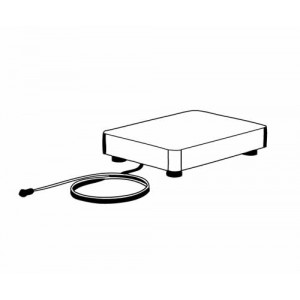

cl5000rp
cl5000rp

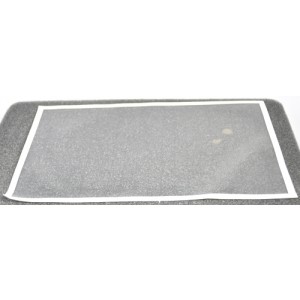

KCL5
KCL5
LST-8020 Label
LST-8020 Label
LST-8030 Label
LST-8030 Label
LSt-8040 label
LSt-8040 label

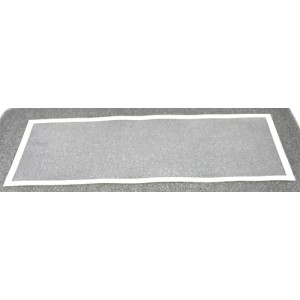

KCL3
