6900 Ultra Low Profile Scales

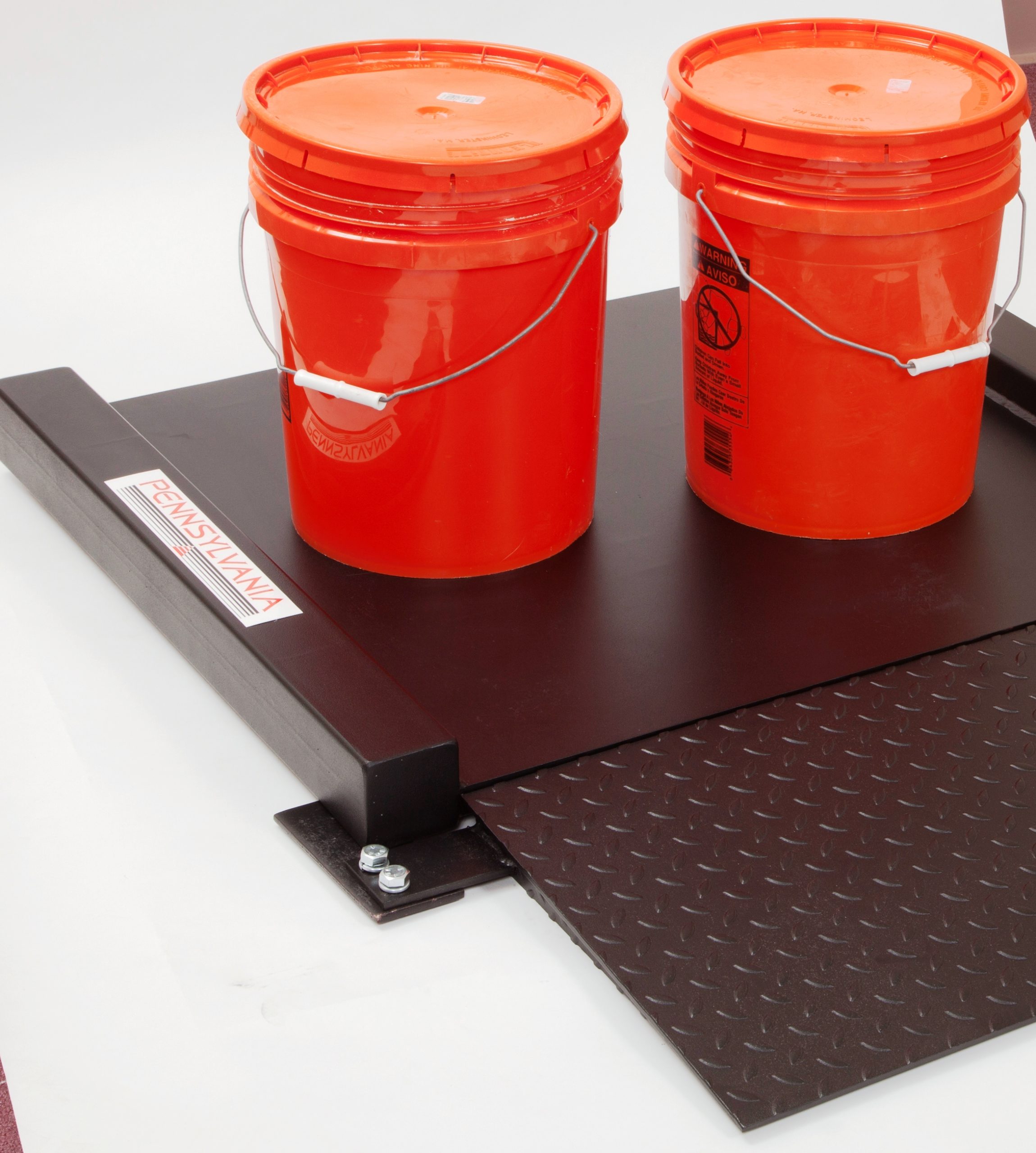

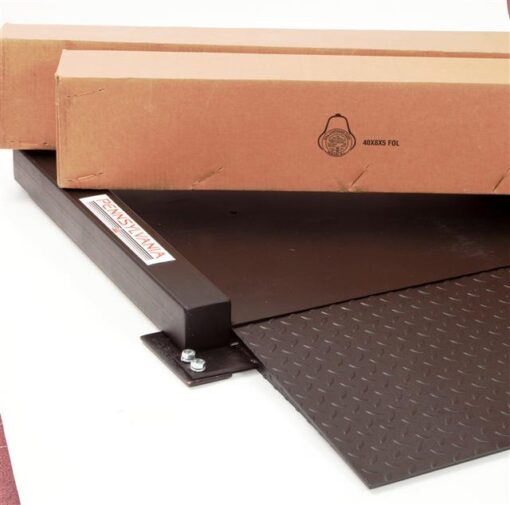

Compact, low-profile design & rugged construction make the 6900 the ideal choice where space is tight such as Commercial LAUNDRY applications, Barrel and Drum weighing. Wet or dry, clean or dirty, heavy or light, permanent or portable, the M6900 floor scale includes low 1-1/2″ profile and 'live' side rails for oversize or bulky items and compact ramp. Platform sizes with flat weighing surface have standard 30 x 30″ and 36 x 36″ areas + optional models up to 48 x 60.”

Ask Us A Question Place Order

OR CALL NOW: 215-739-9644

Category:
  • Sensortronics premium load cells (4) with 100% end loading
  • 20′ cable to digital indicator or scale
  • Exposed surfaces are live for large or bulky items
  • Ideal for permanent or temporary installations
  • Designed to exceed USDA specifications
  • Drums. kegs or barrels loaded by wheeled cart
  • Custom sizes & capacities available
  • 3 year warranty
Summary

product image
Author Rating
1star1star1star1star1star
Aggregate Rating
no rating based on 0 votes
Product Name
6900 Ultra Low Profile Scales
Low Profile Scales
Model # Description Platter Size Display Units Battery
M6900 Mild Steel 6900; 1000 lb cap; 1-1/2" H 30 x 30" Indicator not included Indicator not included AC only
SS6900 Stainless Steel 6900; 1000 lb cap; 1-1/2" H 30 x 30" Indicator not included Indicator not included AC only
69PB - Portable Barrel Scales
Model # Description Platter Size Display Units Battery
M69PB Mild Steel Portable Barrel Scale; 1000 lb cap; 1-1'2" H 30 x 30" Indicator not included NA AC
SS69PB Stainless Steel; Portable Barrel Scale; 1000 lb cap; 1-1'2" H 30 x 30" Indicator not included NA AC
6950 Live Ramp Scale Pkgs
Model # Description Platter Size Display Units Battery
M6950 Mild Steel Portable Barrel Scale; 1000 lb cap; 1-1/2" H 30 x 30" Indicator is not included NA AC
SS6950 Stainless Steel Portable Barrel Scale; 1000 lb cap; 1-1/2" H 30 x 30" Indicator is not included NA AC

6900 Options - Price includes 1 ramp

R-59280-1 (MS)

2nd ramp, 30" x 16" for on/off access
NOTE: (1) ramp is included with the scale
R-59280-3 (SS)

2nd ramp, 30" x 16" for on/off access
NOTE: (1) ramp is included with the scale

36 x 36" Platform

R-59280-2 (MS)

2nd ramp, 36" x 16" for on/off access
NOTE: (1) ramp is included with the scale.
R-59280-4 (SS)

2nd ramp, 36" x 16" for on/off access
NOTE: (1) ramp is included with the scale.

Options for 69PB

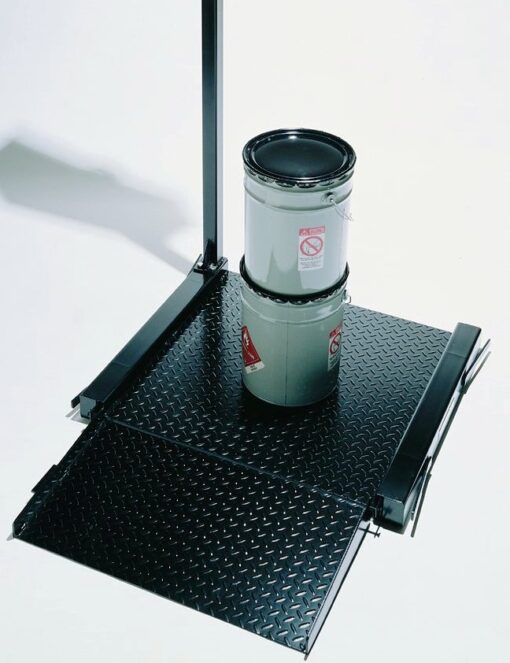

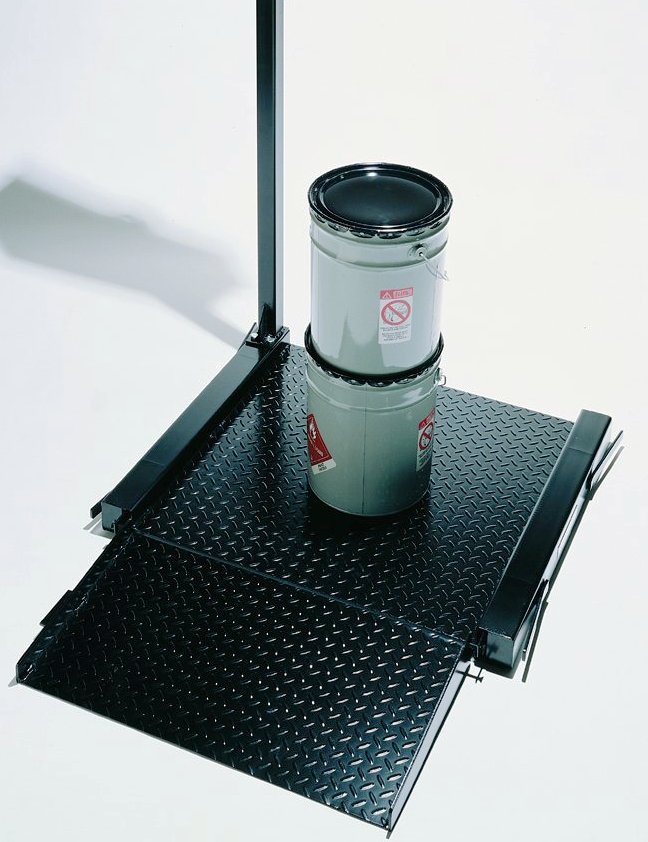

PORTABLE 30 x 30” Barrel Scale. COMPLETE PACKAGE Includes base-mounted Column with Mounting Plate for
PLUS+ Indicator, convenient Retractable Wheels and 1 hinged Ramp (not live).
Additional hinged ramp is available.

R-59281-(MS)

2nd hinged ramp, 29" x 16" for on/off access
NOTE: (1) ramp is included with the scale.
R-59281-SS (SS)

2nd hinged ramp, 29" x 16" for on/off access
NOTE: (1) ramp is included with the scale.

Options for 6950 Live Ramp Scale Pkgs

Unique LIVE ramps built into the weighbridge: Scale platform, side rails, AND RAMP are live 30” wide x 60”
long (flat area is 30 x 30” with on/off access via live ramps) for weighing oversized items. Ideal for laundries
and other areas where space is tight.
Mild Steel & Stainless Steel construction as indicated.

NOTE: Single ramp and back stop can be substituted by special order (flat surface is then 30 x 39”) – for push
on/pull off weighing with flat surface 30 x 42”, single live ramp.
Ideal for LAUNDRY applications where space is at a premium. Can be made with (1) ramp and backstop for 30
x48” live flat weighing surface
