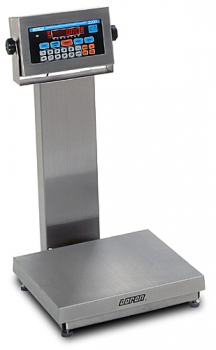

APS2200 & 2200 Series Stainless Steel All Purpose Scale

Doran 2200 & APS2200 Series Scales

The Doran 2200 and APS2200 stainless stell app purpose scales are Washdown Safe, NTEP certified, and feature a 1000% Overload “Quad Spring” Base. Shop now!

Includes a 20″ Tall Atlas Column

The Model APS2200 Series includes a 20″-tall column, but if additional height is needed, a 30″-tall column is available. Four different base sizes are available: 15″ x 15″, 18″ x 18″, 18″ x 24″, or 24″ x 24″.

Full Function Keypad

The Model 2200 stainless steel digital scale puts you in control of its advanced functions with the intuitive full function keypad. The easy to use keypad allows for simple entry of digital tare, time & date, accumulator, eight product ID’s, setpoint outpoints, and values. Simply enter the desired value, press one of the clearly labeled function keys, and the data is entered—putting the power of Doran’s 2200 at your fingertips. An optional barcode reader is available to enter data even faster and more accurately.

Powerful Software Features

Versatile and easy to use, the Model 2200 gives you the power to make the weighing system an integral component of your day to day operation. Standard software features such as programmable data communication, product grading, peak hold, multiple ID numbers, accumulator, and counter, give you the power to effectively manage and monitor your manufacturing process.

Advanced Communications and Control

Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options. Connect with our wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485 or Fiber Optic options. Control your process with our optional relays that can be mounted inside the enclosure to provide a turnkey solution. Communicate with the flexible and user definable data strings to include tare, product ID, and time and date. Send your custom data to a barcode label printer or download it directly to an Excel spreadsheet using Doran’s optional Excelerator Data Collection Program.

Washdown Safe

Superior washdown protection has been engineered into the Model 2200 Advanced Weight Indicator. From the heavy gauge stainless steel to the innovative gasket design, the 2200 meets the NEMA4X and IP69K classification for washdown protection. 1000% Overload Base No…that’s not a typo! Our unique “Quad-Spring” design protects the sensitive load cell from shock and overload damage. Protected to a maximum of ten times the base load rating, this design sets the new industry standard – a feature available only from Doran. Take a “peek under the hood” to see what’s inside our DXL scale base.

Categories: , , , , , , ,
  • Can order 2200 Indicator with a stainless steel or mild steel base instead of Atlas Column.
  • “Quad Spring”Shockproof Base (15 x 15”)
  • 8 Product ID’s, Setpoint Outputs & Grade Values
  • Display: 6 Digit, Red LED, 0.56” High
  • Output: Bi-directional RS-232 Eight Digital Outputs
  • Resolution Range: 0.01lb – 0.2lb
  • Construction: 304 Stainless Steel (16 Gauge)
  • Power: 115 VAC (230 VAC Optional); EMI/ESD protected
  • Meter Only Option
  • Serial Data Communications
  • One-Piece Bracket
  • 20″ to 30″ Tall Column Upgrade
  • Stainless Steel Load Cell
  • 230 VAC Operation External DC Power (12 VDC) Internal Rechargeable Battery Power
  • Load Cell Cable Quick Disconnect, Remote Switch Cable Quick Disconnect & Serial Data Cable Quick Disconnect
  • Remote Switches
  • 4-20mA Analog Output
  • Modbus/TCP
  • Wired Ethernet Network Data Communications & Wireless Ethernet Network Data Communications
  • Fiber Optic Interface
  • RS-485 Serial Data Output & USB Data Interface
  • RS-485 Serial Data Output USB Data Interface
  • Internal Relays, Remote Display & External Relays
  • Audible Alarm Options (External or Internal)
  • Standard Barcode Scanner Heavy Duty Barcode Scanner
  • ISO 9000 Certified
  • Measurement Canada
  • NTEP Certified
  • 2 year warranty
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
APS22050/15 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 50 x 0.01; 22.7kg x 5g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22100/15 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 100 x 0.02; 45kg x 10g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22200/15 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 200 x 0.05; 91kg x 20g 15 x 15" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22100/18S APS2200 Series Stainless Steel All Purpose Scale with 20" Column 100 x 0.02; 45kg x 10g 18 x 18" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22250/18S APS2200 Series Stainless Steel All Purpose Scale with 20" Column 250 x 0.05 lb x 113 x 20g 18 x 18" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22500/18S APS2200 Series Stainless Steel All Purpose Scale with 20" Column 500 x 0.1 lb x 227 x 50g 18 x 18" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22250/1824 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 250 x 0.05 lb x 113 x 20g 18 x 24" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22500/1824 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 500 x 0.1 lb x 227 x 50g 18 x 24" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22250/2424 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 250 x 0.05 lb x 113 x 20g 24 x 24" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS22500/2424 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 500 x 0.1 lb x 227 x 50g 24 x 24" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
APS221000/2424 APS2200 Series Stainless Steel All Purpose Scale with 20" Column 1000 x 0.2 lb x 454 x 0.1g 24 x 24" 6 Digit Red LED lb; g; kg; oz; lb:oz 115 VAC Indicator-6 x 10 x 3" ; 20" Column Call
