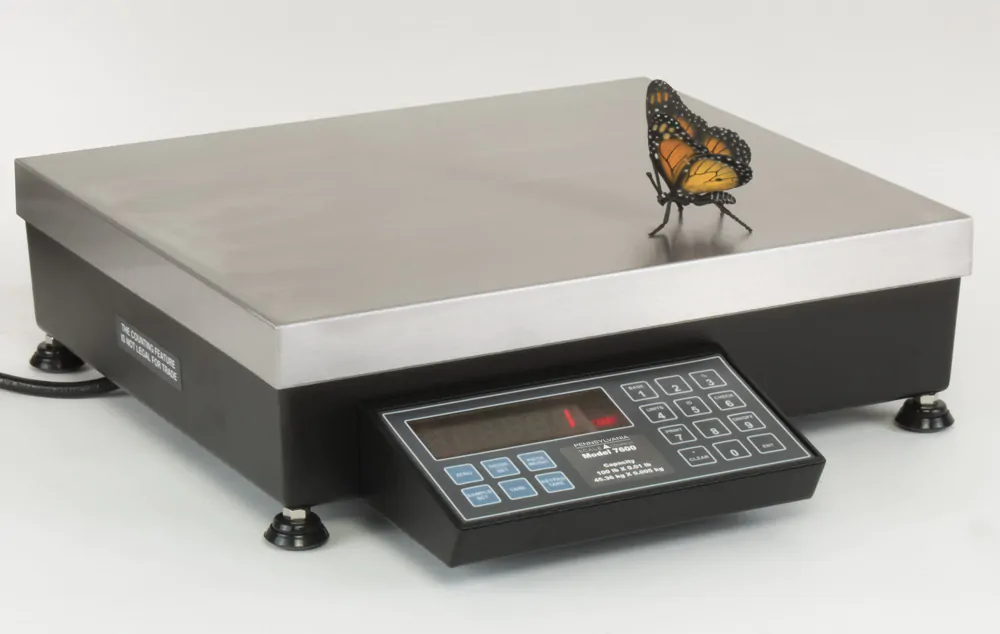

7600 Bench Count and Weigh Scale

Fast, Accurate and Powerful

From simple one-button counting to sophisticated inventory control systems, the 7600 Series bench counting scales have a long list of features designed to adapt to your changing needs. Single or dual base counting. Percent of Error or Accuracy. Sample Update.™ Powerful RS-232. Rugged cast construction. Clean, efficient design means impressive accuracy and stable counting and weighing in a wide range of requirements.



Categories: ,
  • Heavy duty cast construction
  • Clean, convenient design–bright, stable display
  • Full numeric keyboard for entry of Tare Weights, 6-digit I.D., Sample Quantity, and Average Piece Weight
  • 1 part in 1 million; high resolution
  • Optional Battery/AC power for portability
  • Automatic Sample UpdateTM
  • Weight displayed in (2) units of measure plus count
  • Single or OPTIONAL DB, Dual base counting and weighing
  • Count mode features Auto Sample Update™, Percent-of-Error/ Accuracy display
  • Fast one-button counting or 2-step sequence (setting)
  • Powerful and flexible standard RS-232 data link + OPTIONAL Analog, Ethernet, Relays
  • OPTIONAL field-installed remote display
  • Four Year Warranty

Applications

  •  Shipping or receiving verifications
  • Checking quantities for production or inventory
  • Rental Scales for short term use: single or dual platform
  • Bench or portable weighing and counting
  • Shipping manifest systems or SPC/SQC
  • Quality control

Weight Capacities

(Other weight units or graduations are available–contact your distributor)

Capacity lb/kg
2 lb x 0.0002 lb – 907.2 g x 0.1 g
5 lb x 0.0005 lb – 2268 g x 0.5 g
10 lb x 0.001 lb – 4536 g x 0.5 g
20 lb x 0.002 lb – 9.072 kg x 0.001 kg
50 lb x 0.005 lb – 22.68 kg x 0.005 kg
100 lb x 0.01 lb – 45.36 kg x 0.005 kg
150 lb x 0.02 lb – 68.04 kg x 0.01 kg
200 lb x 0.02 lb – 90.72 kg x 0.01 kg

Platform
8 x 8” – 203 x 203 mm
8 x 8” – 203 x 203 mm
12 x 14” – 305 x 356 mm
12 x 14” – 305 x 356 mm
12 x 14” – 305 x 356 mm
12 x 14” – 305 x 356 mm
12 x 14” – 305 x 356 mm
12 x 14” – 305 x 356 mm

Optional 2nd Base: Programmable to other capacities/resolutions
Internal resolution: 1 part in 16 million
Weight displayed at 10,000 graduations; programmable to any (2) weight units up to 1 part in 20,000 stable
Fast response of less than 2 seconds full scale

Display Module

Stable, 0.56” 6-digit, 7 segment, bright green LED display
Sealed, rugged, touch panel display
Major functions are highlighted for ease of use

Remote Base/Load Cell Compatibility (optional)

Suitable for a wide range of bases and load cells
Excitation: 10 V
Impedance: 87 to 2,000 ohms
Sensitivity: 1, 2, or 3 mv/V

Count Features

Auto Sample Update™ for accuracy enhancement
(4) Pre-set sample sizes plus keyboard entry
Display of Percent of Error or Accuracy when sampling
Display/Key entry of Piece Weight (or Piece Weight per thousand)
Sample and Sample-to-bulk counting with 2nd optional platform

Weighing Functions

Pushbutton or keyboard Tare entry
Display of Gross/Net /Tare weights
(2) standard metrological weight units

Data Communications

Bidirectional RS-232 standard. Communication options include: USB Virtual Comport, USB HID Keyboard Emulation, Wired Ethernet, WiFi, Analog Output, selectable 0-10VDC or 4-20m

Custom label printing

Interface to third party software systems including data collection, manifesting, quality control, ERP and MRP

Physical Dimensions

14” (L) x 15.5” (W) x 5.25” (H); 15.25 lb
356 mm (L) x 394 mm (W) x 133 mm (H); 6.92 kg

Options

Battery/AC power for portability, Dual base for scale AND remote base counting and weighing, Setpoint/Relays for process control, Analog output 0-10 VDC or 4-20ma, barcode label printing and scanning, stack alarm lights, roller conveyor and custom designs.

Warranty

The parts and components of these Pennsylvania Scale Company products are warranted for four years from the date of retail delivery against defects in materials and workmanship, subject to the terms and conditions of our standard warranty.
