7300 Heavy Duty Bench Scale Series

$742.00

$742.00

Select options

7300 Heavy Duty Bench Scale Series

$742.00

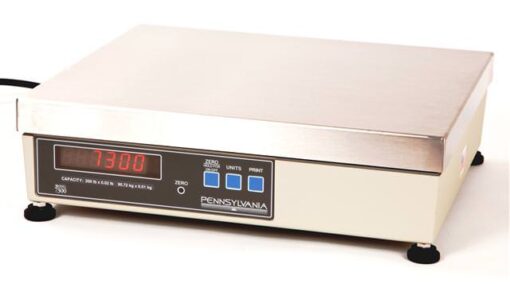

Pennsylvania Scale 7300 Bench Scale

The Pennsylvania Scale 7300 Bench scale is a superb foundation for a stand-alone scale or weighing system! Rugged cast construction, weighing in choice of (2) weight units, equipped for remote displays or standard RS-232 output. Compatible with most shipping manifest systems such as UPS Worldship ™ or FedEX. Designed for long life and sustained accuracy in the most demanding situation –

Product Manufacturer: Pennsylvania Scale

Description

NTEP certified
8 capacities-from 2-200lbs
Extra rugged cast base, heavy duty construction
10,000 displayed counts in any of (2) weight units (specify with order)
Remote display connector for dual displays with or without buttons
Programmable RS-232 serial data interface standard
(2) standard weight units can be provided as Primary and Secondary units of measure: Other weight units & resolutions including Lb/Oz—can be specified with order
4 year warranty
Made in Lancaster, Pennsylvania

Additional information

Model 7300

7300-2, 7300-5, 7300-10, 7300-20, 7300-50, 7300-100, 7300-150, 7300-200

Technical Specs

Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
7300-2 2 lb Capacity-Aluminum Platform-NTEP 2 x 0.0002 lb; 907.2 x 0.1 g 8"(w) x 8"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-5 5 lb Capacity-Aluminum Platform-NTEP 5 x 0.0005 lb; 2268 x 0.2 g 8"(w) x 8"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-10 10 lb Capacity-SS Platform-NTEP 10 x 0.001 lb; 4536 x 0.5 g 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-20 20 lb Capacity-SS Platform-NTEP 20 x 0.002 lb; 9.072 x 0.001 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-50 50 lb Capacity-SS Platform-NTEP 50 x 0.005 lb; 22.68 x 0.005 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-100 100 lb Capacity-SS Platform-NTEP 100 x 0.01 lb; 45.36 x 0.005 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-150 150 lb Capacity-SS Platform-NTEP 150 x 0.02 lb; 68.04 x 0.01 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs
7300-200 200 lb Capacity-SS Platform-NTEP 200 x 0.02 lb; 90.72 x 0.01 kg 12"(w) x 14"(d) LED on Front lb; g AC/DC 12.25 (D) x 14.25 21 lbs

Brochure

Options:

(2) standard weight units can be provided as Primary and Secondary units of measure: Other weight units & resolutions including Lb/Oz—can be specified with order

AC/DC Operation

RDT –REMOTE DISPLAY, MINI TOWER - Remote Display (total of 2 displays) with MINI TOWER and mount for counter or bench, 15” height, 10’ cable; can be easily installed in the field as plug & play

RDW Desk/Wall Bracket - Remote Display (total of 2 displays) with WALL BRACKET and 10’ cable can be easily added in the field

57592 - Rodent Cover; blocks opening at bottom of scale

57520 - Replacement Battery Pack for AC/DC units

57825 - 220/230 Volt Power

TD - Time & Date Printing

56750-5 - Ball Top - Ball Transfer Top Plate, 12 x 14” in place of std. SS platform – 50 lb and up models only

AO – ANALOG OUTPUT or 57811 FIELD KIT - Jumper select 0-10 VDC or 4-20 mA proportional output via 2 post terminals

ETHERNET MODULE or 57869A FIELD KIT - Lantronix Xport module and option board includes software license & IP address

SAE SPECIAL APPLICATIONS - Many standard or optional special operational features can be flashed-in using Serial Data Loader feature

57520 - Replacement Battery Pack for AC/DC units

UPS ONLINE, FedEX, Custom output string - Easy to set in the field by menu selection for shipping manifest systems and to emulate data strings for communication to replace existing units.

DUAL/TRIPLE RANGING - BY MENU SETTING (specify ranges, non-COC)
