CKW checkweighing Scale
Champ CKW Checkweighing Scale

Champ CKW Checkweighing Scale

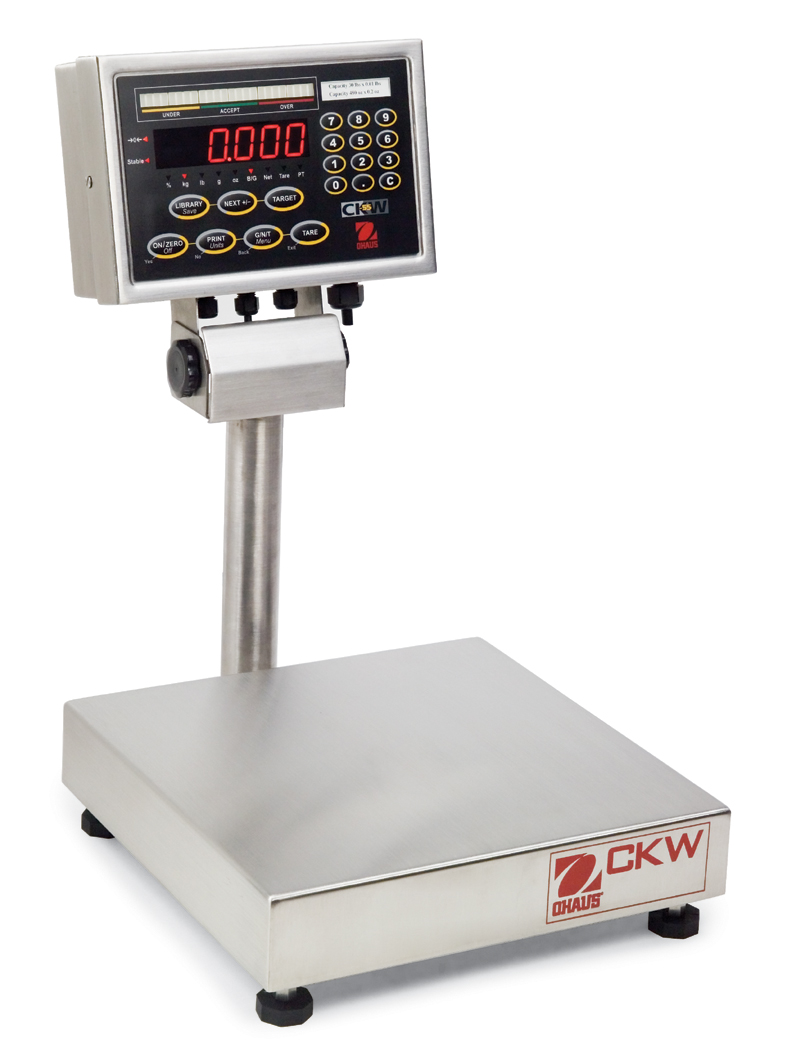

OHAUS Champ CKW Checkweighing Scale

The OHAUS Champ CKW Series Scale models are engineered for static checkweighing operations and other bench weighing applicationsā€”from general purpose to washdown. With its easy-to-clean design built for food safety conformance and rigid stainless steel construction, the CKW Series scales are ideally suited for use in industrial environments. Its configurability and construction were designed for simplicity and dependability, resulting in increased productivity, security and lower cost of ownership.

Categories: , , , , , , ,

Description

  • Precision Resolution: 1:6000-7500 maximum, certified 1:3000
  • All Stainless Steel Construction
  • Removable stainless steel platform with extended skirt and open frame, stainless steel IP66 indicator and IP67 load cell
  • Food Safe Design: NSF listed/certified to NSF/ANSI 169-2005 (formerly NSF C-2) and USDA-AMS accepted to NSF/3-A 14159-1, supports HACCP compliance
  • Checkweighing Setpoint Configurability: Set targets by Range, Variance by Weight or Percent

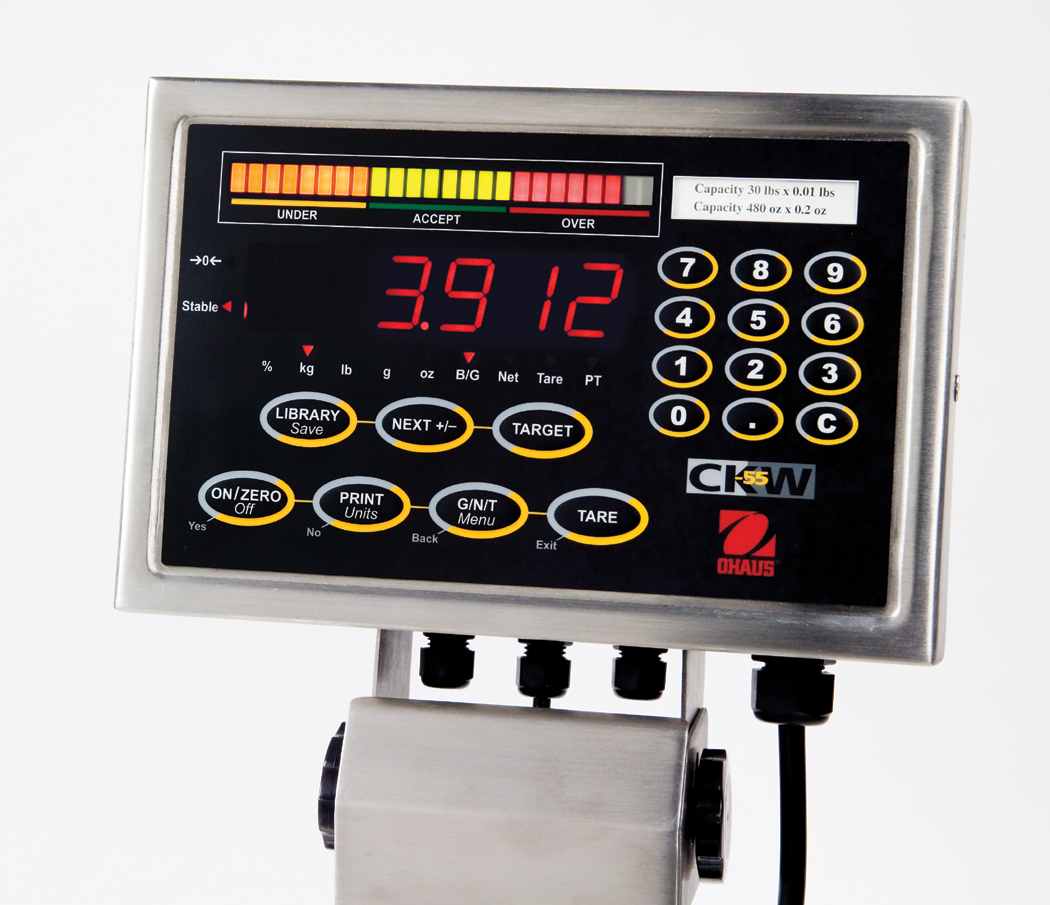

  • Checkweighing Indications: 3-color 24-segment bar graph, Beeper Alert, Weight Display Alert
  • Checkweighing Methods: Positive, Negative (Take-out), Zero or Net Checkweighing
  • 20 Part Library Storage: Store information on Item ID No., Over, Under, Target and Pre-set Tare Values
  • Statistical Function: Includes accumulation with number of weighments, Average and Standard Deviation CKW Series Checkweighing Scale SUPPORTS HACCP COMPLIANCE
  • Measurement Canada Certification
  • NSF Approved
  • USDA Approved
  • NTEP Certified
  • 1 year warranty
Model # Description Capacity Platter Size Display Unit of Measure Battery Dimensions Shipping Weight
CKW3R55 CKW3R55 Champ CKW Checkweighing Scale 6 lb x 0.002 lb 3 kg x 0.001 kg 10 x 10 x 2.3" LED kg; g; lb; oz; lb:oz; % AC or rechargeable battery 11.8" column 20 Lbs
CKW6R55 Champ CKW Checkweighing Scale 15 lb x 0.005 lb 6 kg x 0.002 kg 10 x 10 x 2.3" LED kg; g; lb; oz; lb:oz; % AC or rechargeable battery 11.8" column 22 Lbs
CKW15L55 Champ CKW Checkweighing Scale 30 lb x 0.01 lb 15 kg x 0.005 kg 12 x 12 x 2.3" LED kg; g; lb; oz; lb:oz; % AC or rechargeable battery 11.8" column 27 Lbs
CKW30L55 Champ CKW Checkweighing Scale 60 lb x 0.02 lb 30 kg x 0.01 kg 12 x 12 x 2.7" LED kg; g; lb; oz; lb:oz; % AC or rechargeable battery 11.8" column 29 Lbs

https://www.pennscale.com/wp-content/uploads/2013/03/CKW-Series-Checkweighing-Scale.pdf

CKW Instruction Manual

CKW Quick Start Guide

CKW Quick Start Guide Indicator
